EML3190 - 420kHz Non-synchronous Step-Down Converter

Description

The EML3190 is a 5A, current-mode step-down converter with an integrated high-side switch.

The EML3190 operates with the wide input voltage from 4.5V to 36V and provides an adjustable output voltage from 0.808V to 30V.

Features

  • a PWM mode operation with internally fixed 420kHz switching frequency. The EML3190 provides a single highly efficient solution with current mode control for fast loop response and easy compensation. The EML3190 also automatically enters PSM mode at light load. Cycle-by-cycle current limiting and thermal shutdown are provided for fault condition protections. An internal 2ms soft-start design reduces input start-up current and prevents the output voltage and inductor current from overshooting duri.

📥 Download Datasheet

Datasheet Details

Part number EML3190
Manufacturer ESMT
File Size 647.17 KB
Description 420kHz Non-synchronous Step-Down Converter
Datasheet download datasheet EML3190 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
EML3170 Synchronous Step-Down Regulator Elite Semiconductor
EML3171 Synchronous Step-Down DC-DC Converter Elite Semiconductor
EML3172 Synchronous Step-Down DC-DC Converter Elite Semiconductor
EML3173 Synchronous Step-Down DC-DC Converter Elite Semiconductor
EML3175 Synchronous Step-Down DC-DC Converter Elite Semiconductor

Other Datasheets by ESMT

Part Number Description
EML3191 1.5MHz Non-synchronous Step-Down Converter
EML3192 420kHz Non-synchronous Step-Down Converter
EML3193 1.5MHz Non-synchronous Step-Down Converter
EML3193B 2MHz Non-synchronous Step-Down Converter
EML3276 Synchronous Step-Down DC-DC Converter

Full PDF Text Transcription

Click to expand full text

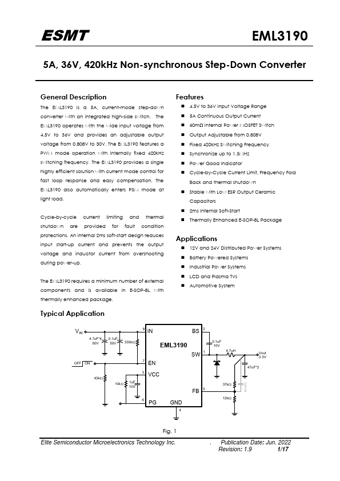

ESMT EML3190 5A, 36V, 420kHz Non-synchronous Step-Down Converter General Description The EML3190 is a 5A, current-mode step-down converter with an integrated high-side switch. The EML3190 operates with the wide input voltage from 4.5V to 36V and provides an adjustable output voltage from 0.808V to 30V. The EML3190 features a PWM mode operation with internally fixed 420kHz switching frequency. The EML3190 provides a single highly efficient solution with current mode control for fast loop response and easy compensation. The EML3190 also automatically enters PSM mode at light load. Cycle-by-cycle current limiting and thermal shutdown are provided for fault condition protections.
