ADD2010 - 24-bits Audio Stereo DAC

Name: ADD2010
SKU: ADD2010-1587797

ESMT

The ADD2010 by ESMT is a 24-bits Audio Stereo DAC. Below is the official datasheet preview.

Datasheet Details

Part number	ADD2010
Manufacturer	ESMT
File Size	1.52 MB
Description	24-bits Audio Stereo DAC
Datasheet	ADD2010-ESMT.pdf

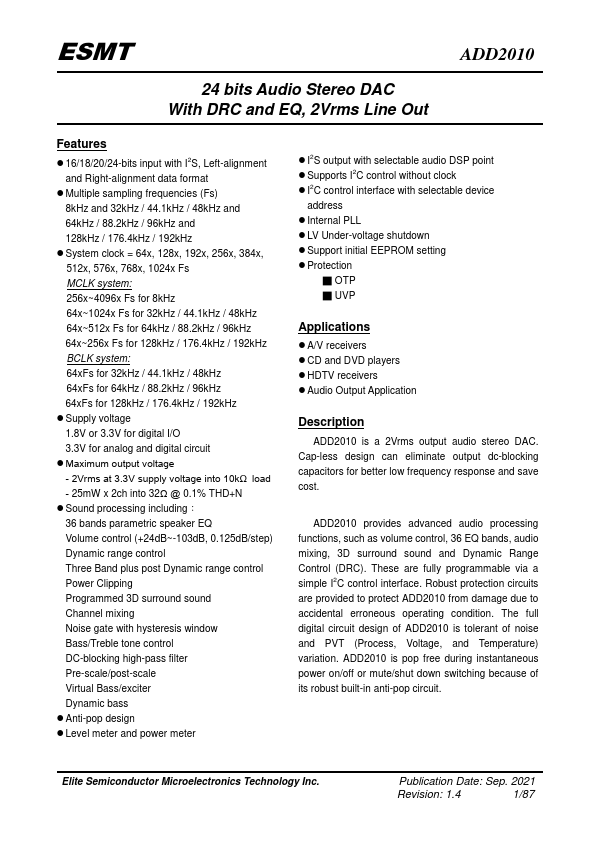

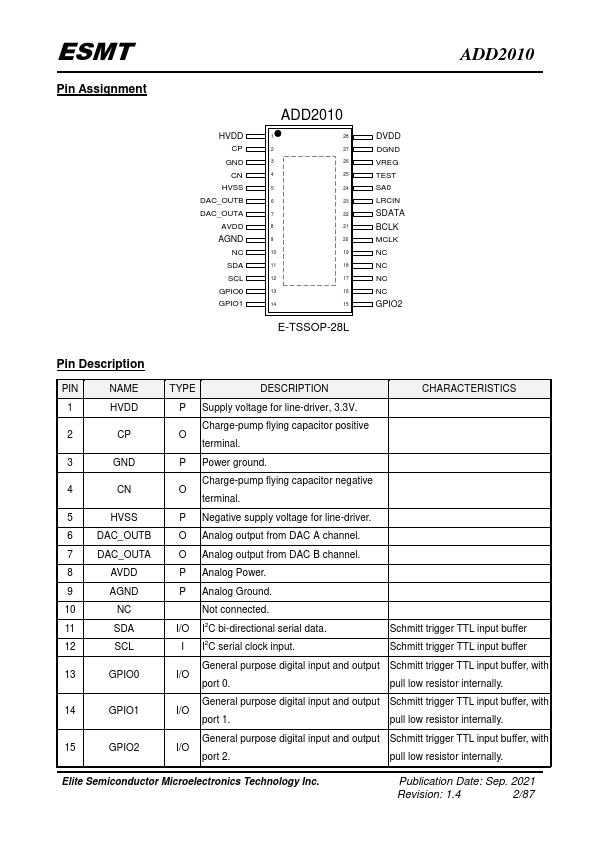

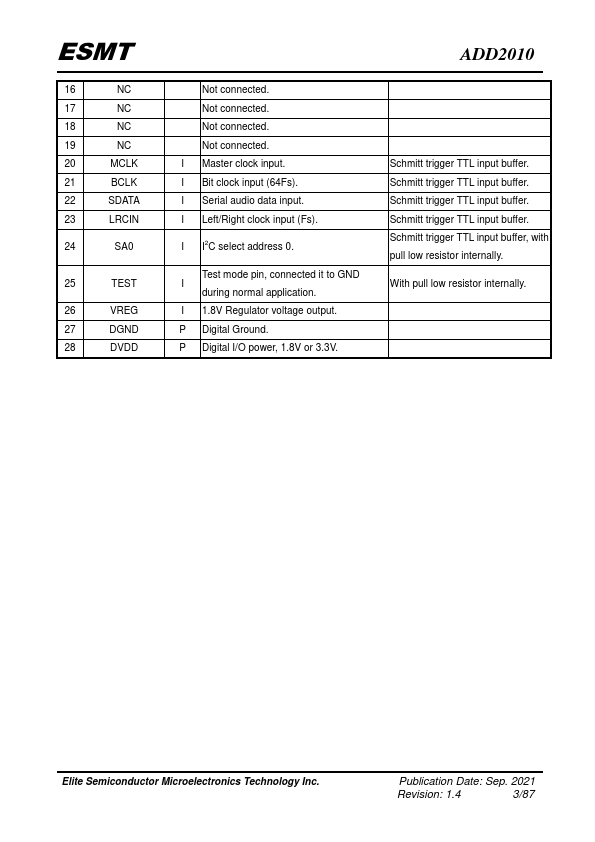

Additional preview pages of the ADD2010 datasheet.

ADD2010 is a 2Vrms output audio stereo DAC.

16/18/20/24-bits input with I2S, Left-alignment and Right-alignment data format.
Multiple sampling frequencies (Fs) 8kHz and 32kHz / 44.1kHz / 48kHz and 64kHz / 88.2kHz / 96kHz and 128kHz / 176.4kHz / 192kHz.
System clock = 64x, 128x, 192x, 256x, 384x, 512x, 576x, 768x, 1024x Fs MCLK system: 256x~4096x Fs for 8kHz 64x~1024x Fs for 32kHz / 44.1kHz / 48kHz 64x~512x Fs for 64kHz / 88.2kHz / 96kHz 64x~256x Fs for 128kHz / 176.4kHz / 192kHz BCLK system: 64xFs for 32kHz / 44.1kHz / 48k.
