AD83586B - 2.1CH Digital Audio Amplifier

Description

AD83586B is a digital audio amplifier capable of driving a pair of 8Ω, 20W plus a single 4Ω, 40W, or a pair of 4Ω, 40W or a single 4Ω, 60W speaker operating at 24V supply with proper cooling method.

Features

  • 16/18/20/24-bits input with I2S, Left-alignment and Right-alignment data format.
  • PSNR & DR (A-weighting) Stereo: 98dB (PSNR), 107dB (DR) @24V.
  • Multiple sampling frequencies (Fs) 32kHz / 44.1kHz / 48kHz and 64kHz / 88.2kHz / 96kHz and 128kHz / 176.4kHz / 192kHz.
  • System clock = 64x, 128x, 192x, 256x, 384x, 512x, 576x, 768x, 1024x Fs 64x~1024x Fs for 32kHz / 44.1kHz / 48kHz 64x~512x Fs for 64kHz / 88.2kHz / 96kHz 64x~256x Fs for 128kHz / 176.4kHz / 192kHz.
  • BCLK system supp.

📥 Download Datasheet

Datasheet Details

Part number AD83586B
Manufacturer ESMT
File Size 1.27 MB
Description 2.1CH Digital Audio Amplifier
Datasheet download datasheet AD83586B Datasheet

📁 Similar Datasheet

  • AD83586 - 2.1CH Digital Audio Amplifier (Elite Semiconductor)
  • AD83582 - 10W x 2 + 20W 2.1CH Digital Audio Amplifier (Elite Semiconductor)
  • AD835 - 4-Quadrant Multiplier (Analog Devices)
  • AD8350 - Low Distortion 1.0 GHz Differential Amplifier (Analog Devices)
  • AD8351 - Low Distortion Differential RF/IF Amplifier (Analog Devices)
  • AD8351-EP - Low Distortion Differential RF/IF Amplifier (Analog Devices)
  • AD8352 - 2 GHz Ultra Low Distortion Differential RF/IF Amplifier (Analog Devices)
  • AD8353 - RF Gain Block (Analog Devices)
  • AD8354 - RF Gain Block (Analog Devices)
  • AD830 - High Speed Video Difference Amplifier (Analog Devices)
Other Datasheets by ESMT
  • AD83586C - 2x60W Stereo / 1x120W Mono / 2x30W+1x60W 2.1CH Digital Audio Amplifier
  • AD83584D - 2 x 25W Stereo / 1 x 50W Mono Digital Audio Amplifier
  • AD8356A - 2.1-Channel Digital Audio Amplifier
  • AD82010 - Mono Filter-less Digital Audio Amplifier
  • AD82050 - Mono Digital Audio Amplifier
  • AD82088 - Mono Digital Audio Amplifier
  • AD82088D - 2x25W Stereo / 1x50W Mono Digital Audio Amplifier
  • AD82120 - Mono Digital Audio Amplifier

Full PDF Text Transcription

Click to expand full text

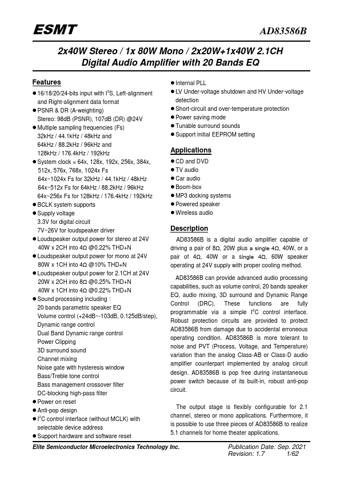

ESMT AD83586B 2x40W Stereo / 1x 80W Mono / 2x20W+1x40W 2.1CH Digital Audio Amplifier with 20 Bands EQ Features  16/18/20/24-bits input with I2S, Left-alignment and Right-alignment data format  PSNR & DR (A-weighting) Stereo: 98dB (PSNR), 107dB (DR) @24V  Multiple sampling frequencies (Fs) 32kHz / 44.1kHz / 48kHz and 64kHz / 88.2kHz / 96kHz and 128kHz / 176.4kHz / 192kHz  System clock = 64x, 128x, 192x, 256x, 384x, 512x, 576x, 768x, 1024x Fs 64x~1024x Fs for 32kHz / 44.1kHz / 48kHz 64x~512x Fs for 64kHz / 88.2kHz / 96kHz 64x~256x Fs for 128kHz / 176.4kHz / 192kHz  BCLK system supports  Supply voltage 3.3V for digital circuit 7V~26V for loudspeaker driver  Loudspeaker output power for stereo at 24V 40W x 2CH into 4Ω @0.
