B82141B, B82141A SBC choke

B82141B Description

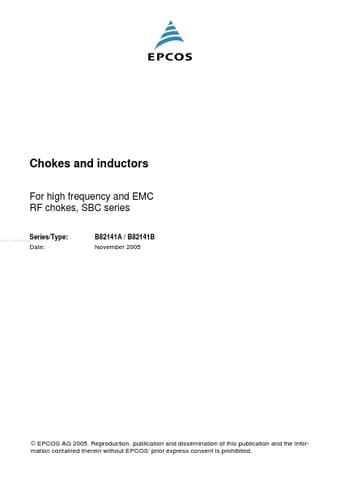

Chokes and inductors For high frequency and EMC RF chokes, SBC series Series/Type: B82141A / B82141B November 2005 www.DataSheet4U.com 7f…fÁRspp… Da.

B82141B Features

* Small size
* Relatively high rated current

B82141B Applications

* RF blocking and filtering
* Decoupling and interference suppression
* For electronic household appliances, automotive and entertainment electronics Terminals
* Central axial leads, lead-free tinned
* Radially bent to 5 mm lead spacing Marking Inductance indicated by color ban

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: B82141B, B82141A. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
B82141B, B82141A
Manufacturer
EPCOS
File Size
245.24 KB
Datasheet
B82141A_EPCOS.pdf
Description
SBC choke
Note
This datasheet PDF includes multiple part numbers: B82141B, B82141A.
Please refer to the document for exact specifications by model.
