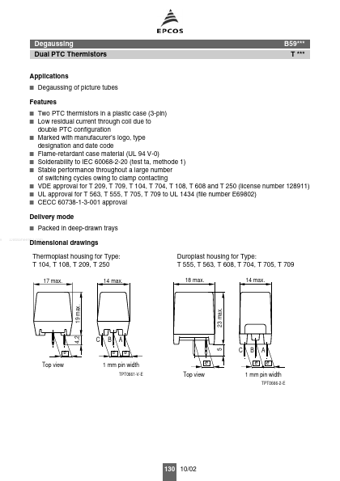

B59T104, B59108 - Degaussing of picture tubes

EPCOS

Datasheet Details

Part number	B59T104, B59108
Manufacturer	EPCOS
File Size	126.88 KB
Description	Degaussing of picture tubes
Datasheet	B59108_EPCOS.pdf
Note	This datasheet PDF includes multiple part numbers: B59T104, B59108. Please refer to the document for exact specifications by model.

es I Two PTC thermistors in a plastic case (3-pin) I Low residual current through coil due to double PTC configuration I Marked with manufacurer’s logo, type designation and date code I Flame-retardant case material (UL 94 V-0) I Solderability to IEC 60068-2-20 (test ta, methode 1) I Stable performance throughout a large number of switching cycles owing to clamp contacting I VDE approval for T 209, T 709, T 104, T 704, T 108, T 608 and T 250 (license number 128911) I UL approval for T 563, T.
