B39212B7641P510 Datasheet - EPCOS

B39212B7641P510 SAW Duplexer

and speciﬁcations contained in this publication are still applicable before or when you place an order. We also reserve the right to discontinue production and delivery of products. Consequently, we cannot guarantee that all products named in this publication will always be available. Unless otherw.

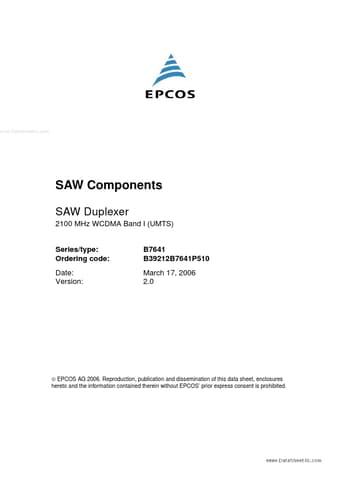

www.DataSheet4U.com SAW Components SAW Duplexer 2100 MHz WCDMA Band I (UMTS) Series/type: Ordering code: Date: Version: B7641 B39212B7641P510 March 17, 2006 2.0 © EPCOS AG 2006. Reproduction, publication and dissemination of this data sheet, enclosures hereto and the information contained therein without EPCOS’ prior express consent is prohibited. SAW Components SAW Duplexer Data sheet Application s Low-loss SAW duplexer for mobile telephone B7641 1950.0 / 2140.0 MHz WCDMA Band I (UMTS) s.

B39212B7641P510 Features

* Package size 3.0 x 2.5 x 1.0 mm3 RoHS compliant Approx. weight 0.035 g Package for Surface Mount Technology (SMT) s Ni, gold-plated terminals s Fully matched by integrated matching network s s s s Pin configuration s s s s s 1 3 6 2, 4, 5 7, 8, 9 TX Input RX Output Antenna To be grounded To be gr
