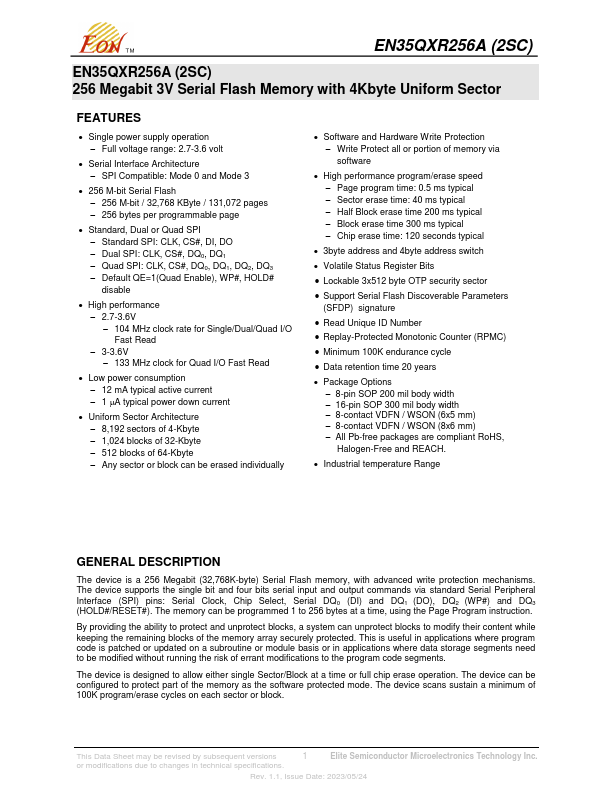

Description
The device is a 256 Megabit (32,768K-byte) Serial Flash memory, with advanced write protection mechanisms.
Features
- Single power supply operation.
- Full voltage range: 2.7-3.6 volt.
- Serial Interface Architecture.
- SPI Compatible: Mode 0 and Mode 3.
- 256 M-bit Serial Flash.
- 256 M-bit / 32,768 KByte / 131,072 pages.
- 256 bytes per programmable page.
- Standard, Dual or Quad SPI.
- Standard SPI: CLK, CS#, DI, DO.
- Dual SPI: CLK, CS#, DQ0, DQ1.
- Quad SPI: CLK, CS#, DQ0, DQ1, DQ2, DQ3.
- Default QE=1(Quad Enable), WP#, HOLD# disable.
