5021D-B13 - 7GHz 35us Max External Fiber Delay Line System

EMCORE

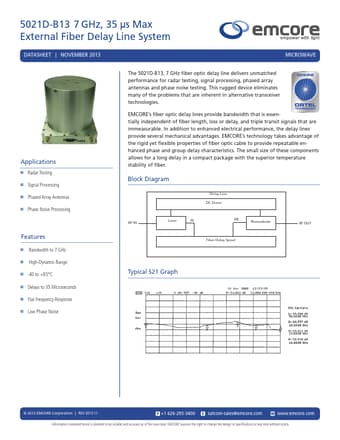

5021D-B13 Datasheet Preview — Preview of 5021D-B13 PDF

Datasheet Details

Part number	5021D-B13
Manufacturer	EMCORE
File Size	576.54 KB
Description	7GHz 35us Max External Fiber Delay Line System
Datasheet	5021D-B13-EMCORE.pdf

5021D-B13 Product details

Description

5021D-B13-XXXXXX Delay Line, 7 GHz, SMA, Delay Time to 35 μs Note1: XXXXXX designates required delay time.Example: 5021D-B13-032550 is a 7 GHz system with 35 μs delay MICROWAVE Laser Safety This product meets the appropriate standard in Title 21 of the Code of Federal Regulations (CFR).FDA/CDRH Class 1M laser product.This device has been classified with the FDA/CDRH under accession number 0220191. All versions of this laser are Class 1M laser product, tested according to IEC 60825-1:2007

Features

Bandwidth to 7 GHz.
High-Dynamic-Range.
-40 to +65°C.
Delays to 35 Microseconds.
Flat Frequency Response.
Low Phase Noise The 5021D-B13, 7 GHz fiber optic delay line delivers unmatched performance for radar testing, signal processing, phased array antennas and phase noise testing. This rugged device eliminates many of the problems that are inherent in alternative transceiver technologies. EMCORE’s fiber optic delay lines provide bandwidth t.
