V6301 - (V6300 / V6301) Ultra Low Power 3-Pin Power-On Reset IC

Product Overview

EM Microelectronic

📥 Download Datasheet

V6301 (V6300 / V6301) Ultra Low Power 3-Pin Power-On Reset IC by EM Microelectronic - Datasheet Preview — Datasheet preview – V6301

Datasheet Details

Part number	V6301
Manufacturer	EM Microelectronic
File Size	380.05 KB
Description	(V6300 / V6301) Ultra Low Power 3-Pin Power-On Reset IC
Datasheet	V6301 Datasheet
Note	This datasheet PDF includes multiple part numbers: V6301, V6300. Please refer to the document for exact specifications by model.

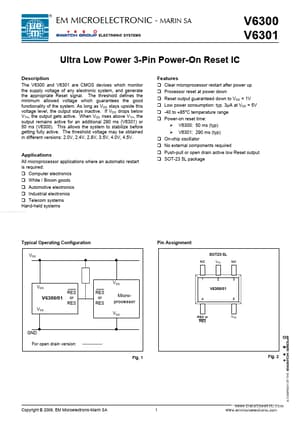

Additional preview pages of the V6301 datasheet.

Product details

Description

The V6300 and V6301 are CMOS devices which monitor the supply voltage of any electronic system, and generate the appropriate Reset signal.

Features

Clear microprocessor restart after power up Processor reset at power down Reset output guaranteed down to VDD = 1V Low power consumption: typ. 3µA at VDD = 5V -40 to +85°C temperature range Power-on reset time: ¾ V6300: 50 ms (typ) ¾ V6301: 290 ms (typ) On-chip oscillator No external components required Push-pull or open drain active low Reset output SOT-23 5L package.
