EM6622 - Ultra-low power microcontroller

Product Overview

EM Microelectronic

Part number	EM6622
Manufacturer	EM Microelectronic
File Size	874.09 KB
Description	Ultra-low power microcontroller
Datasheet	EM6622 Datasheet

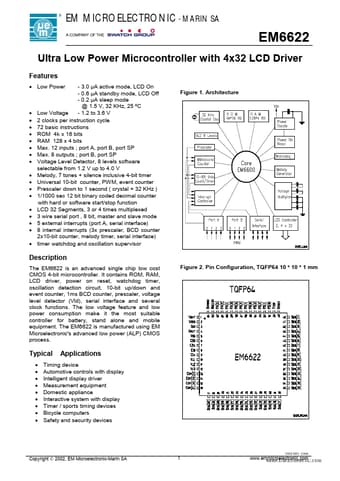

Additional preview pages of the EM6622 datasheet.

The EM6622 is an advanced single chip low cost CMOS 4-bit microcontroller.

Low Power - 3.0 µA active mode, LCD On - 0.6 µA standby mode, LCD Off - 0.2 µA sleep mode @ 1.5 V, 32 KHz, 25 ºC Low Voltage - 1.2 to 3.6 V 2 clocks per instruction cycle 72 basic instructions ROM 4k x 16 bits RAM 128 x 4 bits Max. 12 inputs ; port A, port B, port SP Max. 8 outputs ; port B, port SP Voltage Level Detector, 8 levels software selectable from 1.2 V up to 4.0 V Melody, 7 tones + silence inclusive 4-bit timer Universal 10-bit counter, PWM, event counter Prescaler down to 1.
