EM6420 - Ultra Low Power Capacitive Touch-Sensor Interface

EM Microelectronic

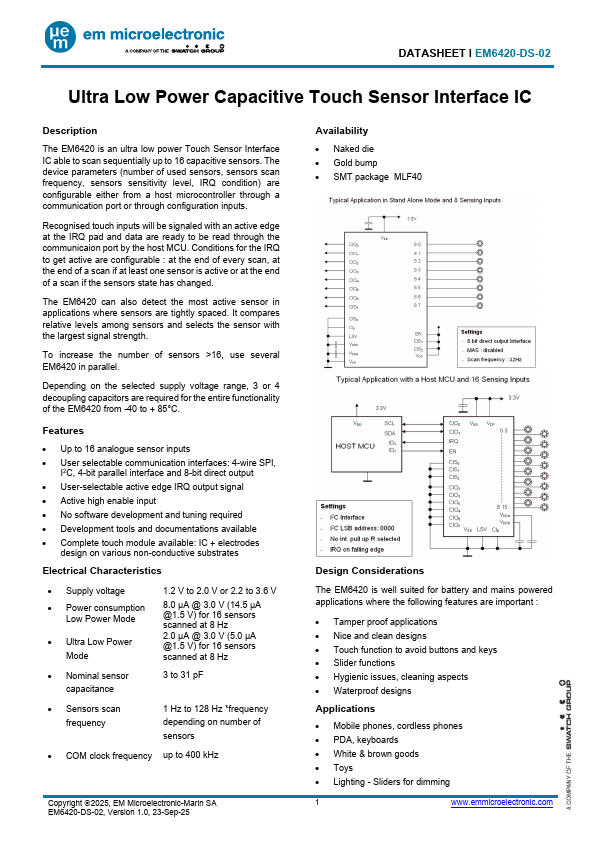

The EM6420 by EM Microelectronic is a Ultra Low Power Capacitive Touch-Sensor Interface. Below is the official datasheet preview.

Datasheet Details

Part number	EM6420
Manufacturer	EM Microelectronic
File Size	1.28 MB
Description	Ultra Low Power Capacitive Touch-Sensor Interface
Datasheet	EM6420_EMMicroelectronic.pdf

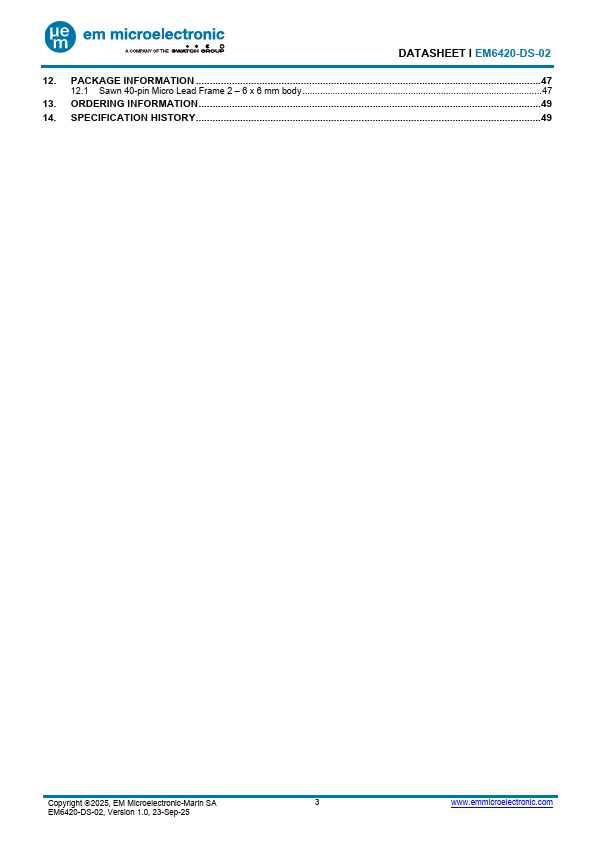

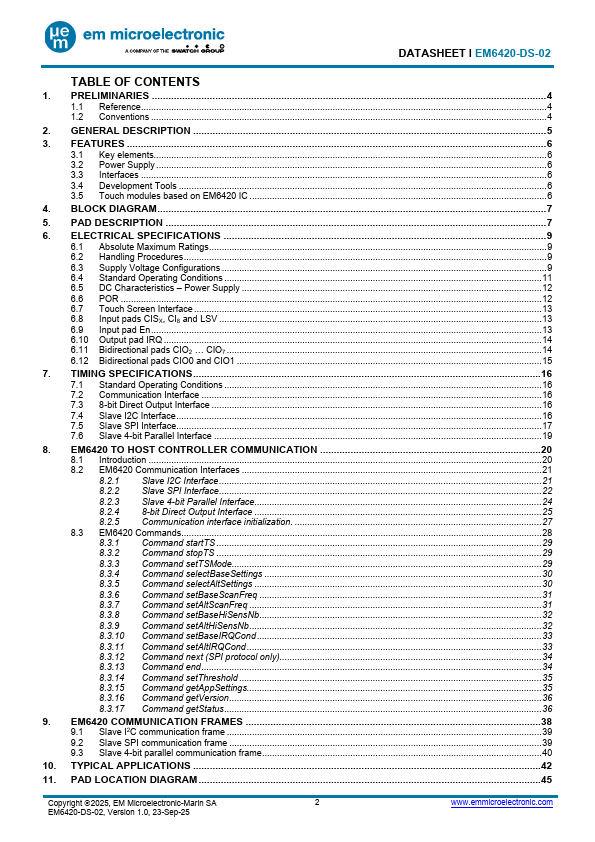

Additional preview pages of the EM6420 datasheet.

The EM6420 is an ultra low power Touch Sensor Interface IC able to scan sequentially up to 16 capacitive sensors.

Up to 16 analogue sensor inputs.
User selectable communication interfaces: 4-wire SPI, I2C, 4-bit parallel interface and 8-bit direct output.
User-selectable active edge IRQ output signal.
Active high enable input.
No software development and tuning required.
Development tools and documentations available.
Complete touch module available: IC + electrodes design on various non-conductive substrates Electrical Characteristics.
