EM4123 Read-only UHF RFID IC

EM4123 Description

EM MICROELECTRONIC - MARIN SA Read-only UHF RFID IC EM4123 .
The chip is used in passive UHF read-only transponder applications.

EM4123 Features

* Factory programmed 64 bit ID number
* High data rate: Up to 256 kbit/s
* Frequency independent: Typically used at 869 MHz, 902 - 960 MHz (versions 001 to 099)
* On-chip oscillator
* On-chip rectifier
* Low voltage operation - down to 1.0 V at ambient temperature
* Tag T

EM4123 Applications

* It is powered up by an RF beam transmitted by the reader, which is received and rectified to generate a supply voltage for the chip. A pre-programmed code is transmitted to the reader by varying the amount of energy that is reflected back to the reader. It implements a robust and fast anticollision

📥 Download Datasheet

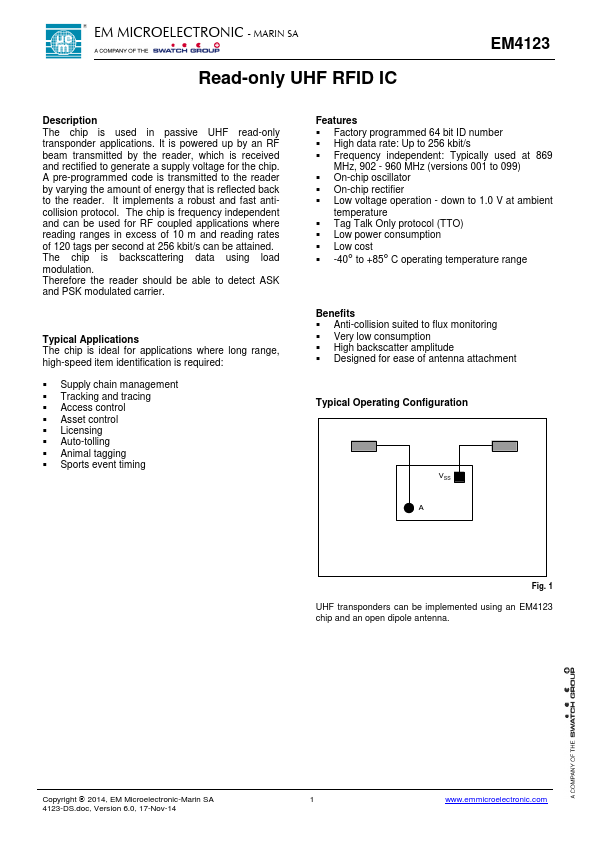

Preview of EM4123 PDF

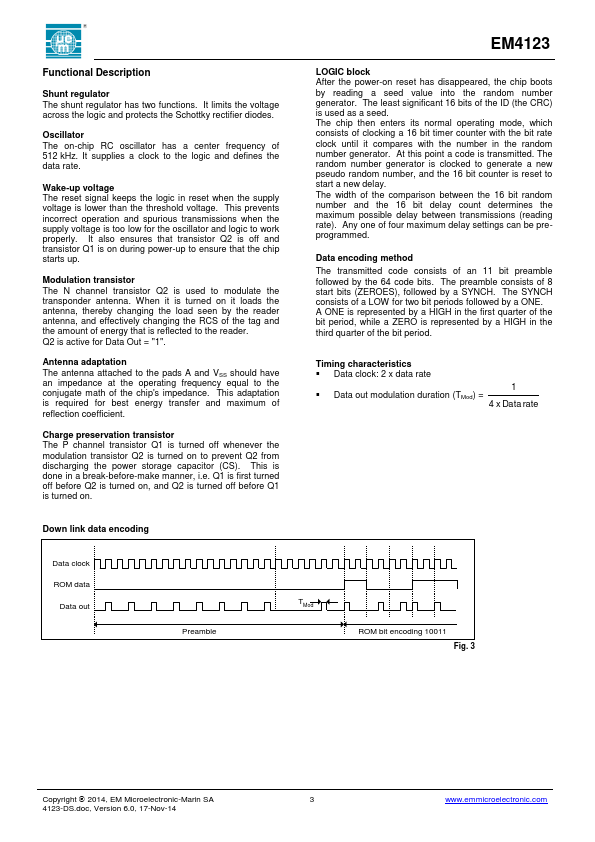

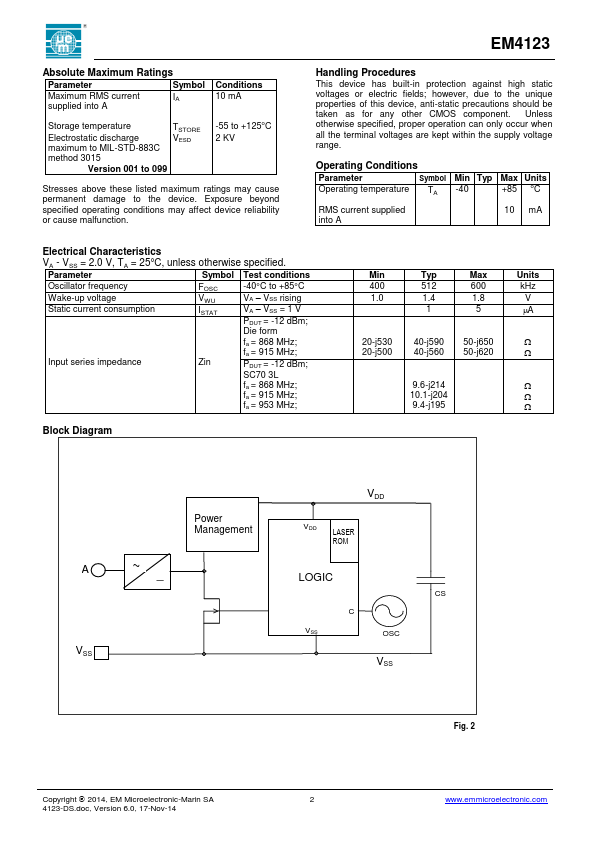

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
EM4123
Manufacturer
EM Microelectronic
File Size
307.10 KB
Datasheet
EM4123-EMMicroelectronic.pdf
Description
Read-only UHF RFID IC
