ELM57113WSA-N - Single P-channel MOSFET

Product Overview

ELM

📥 Download Datasheet

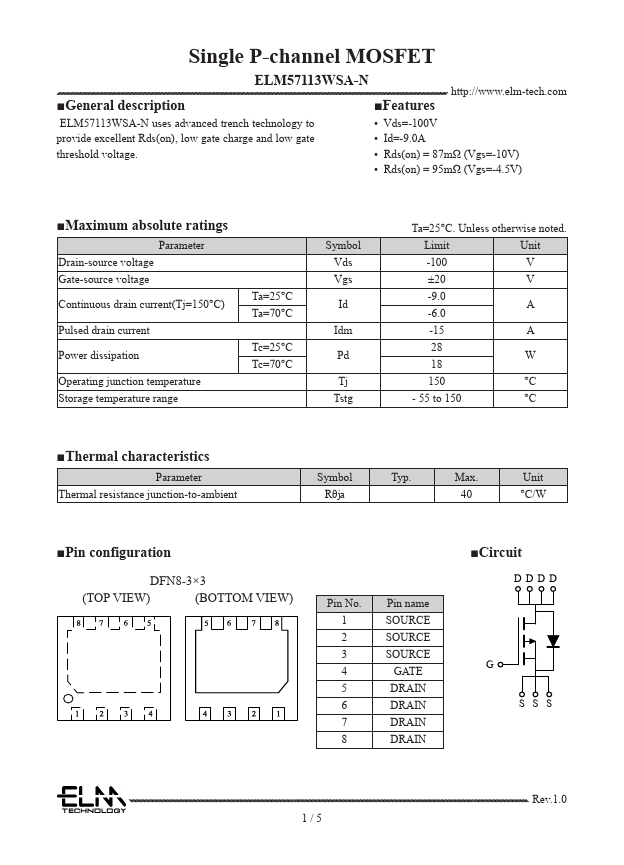

ELM57113WSA-N Single P-channel MOSFET by ELM - Datasheet Preview — Datasheet preview – ELM57113WSA-N

Datasheet Details

Part number	ELM57113WSA-N
Manufacturer	ELM
File Size	750.88 KB
Description	Single P-channel MOSFET
Datasheet	ELM57113WSA-N Datasheet

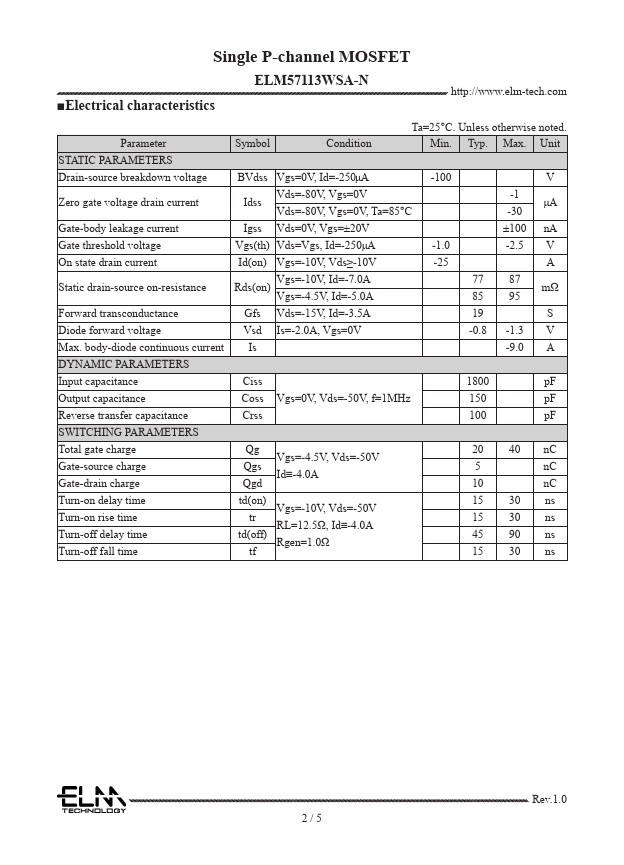

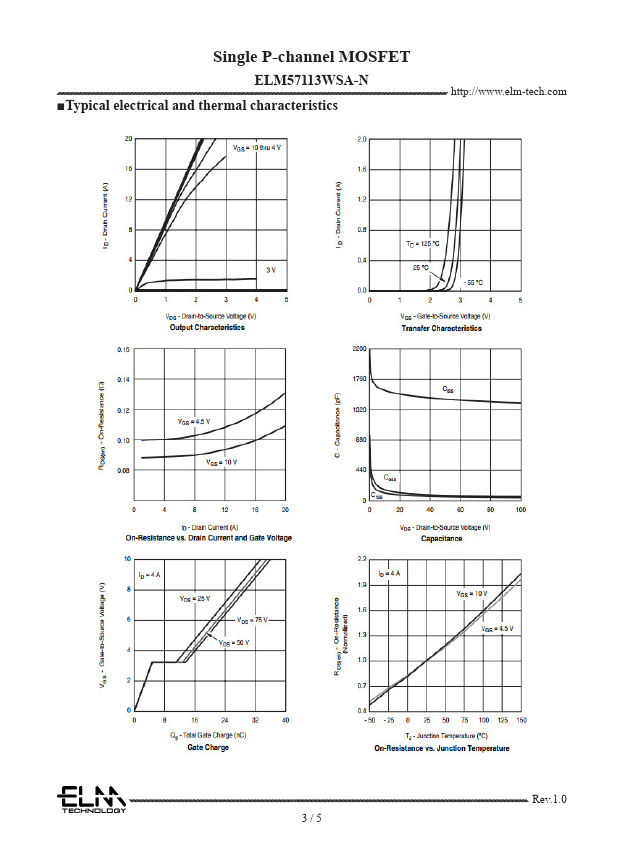

Additional preview pages of the ELM57113WSA-N datasheet.

Product details

Features

ELM57113WSA-N uses advanced trench technology to.
Vds=-100V provide excellent Rds(on), low gate charge and low gate.
Id=-9.0A threshold voltage.
Rds(on) = 87mΩ (Vgs=-10V).
Rds(on) = 95mΩ (Vgs=-4.5V).
Maximum absolute ratings Parameter Drain-source voltage Gate-source voltage Continuous drain current(Tj=150°C) Pulsed drain current Power dissipation Operating junction temperature Storage temperature range Ta=25°C Ta=70°C Tc=25°C Tc=70°C Symbol Vd.
