ELM4DNB6254FNA-N - Dual N-channel MOSFET

Product Overview

ELM

📥 Download Datasheet

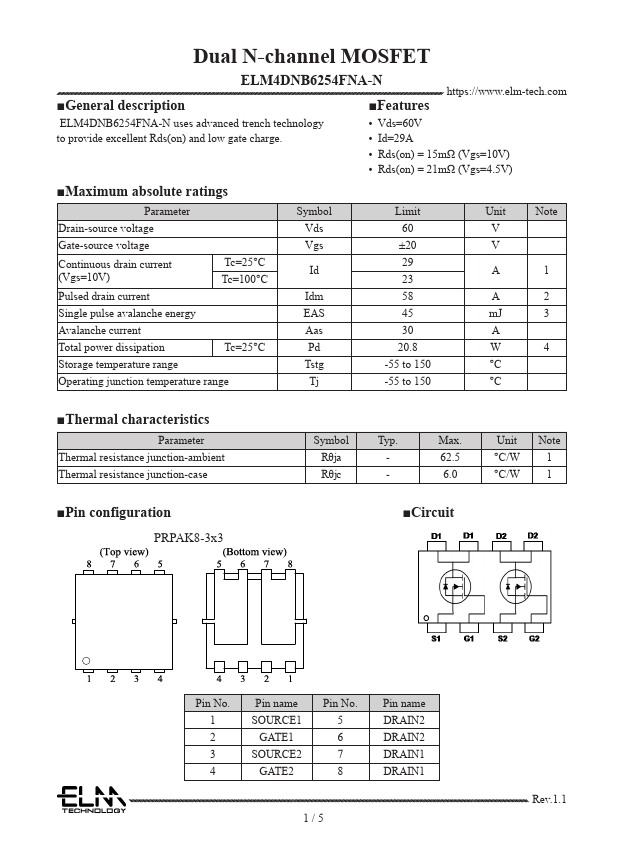

ELM4DNB6254FNA-N Dual N-channel MOSFET by ELM - Datasheet Preview — Datasheet preview – ELM4DNB6254FNA-N

Datasheet Details

Part number	ELM4DNB6254FNA-N
Manufacturer	ELM
File Size	949.29 KB
Description	Dual N-channel MOSFET
Datasheet	ELM4DNB6254FNA-N Datasheet

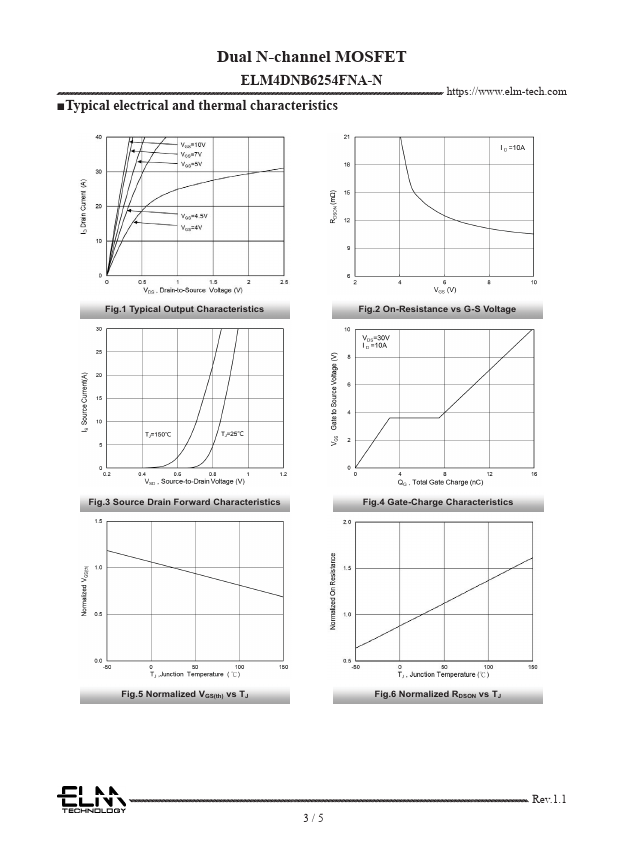

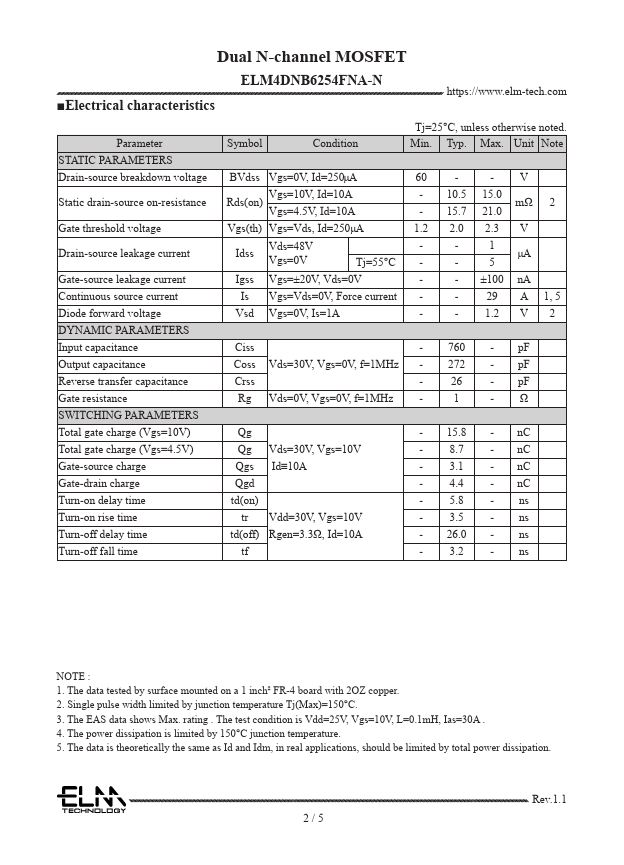

Additional preview pages of the ELM4DNB6254FNA-N datasheet.

Product details

Features

ELM4DNB6254FNA-N uses advanced trench technology.
Vds=60V to provide excellent Rds(on) and low gate charge.
Id=29A.
Rds(on) = 15mΩ (Vgs=10V).
Rds(on) = 21mΩ (Vgs=4.5V).
Maximum absolute ratings Parameter Drain-source voltage Gate-source voltage Continuous drain current (Vgs=10V) Tc=25°C Tc=100°C Pulsed drain current Single pulse avalanche energy Avalanche current Total power dissipation Tc=25°C Storage temperature range Operating junct.
