ELM382 - 50Hz Long Interval Counter

ELM Electronics

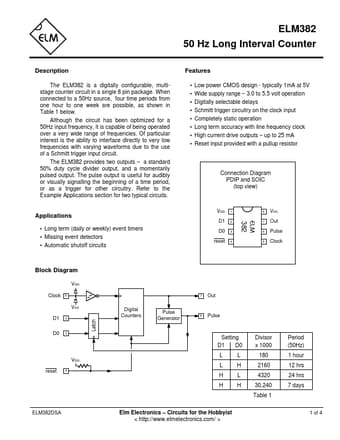

The ELM382 by ELM Electronics is a 50Hz Long Interval Counter. Below is the official datasheet preview.

Datasheet Details

Part number	ELM382
Manufacturer	ELM Electronics
File Size	22.06 KB
Description	50Hz Long Interval Counter
Datasheet	ELM382_ELMElectronics.pdf
Additional preview pages of the ELM382 datasheet.

The ELM382 is a digitally configurable, multistage counter circuit in a single 8 pin package.

Low power CMOS design - typically 1mA at 5V.
Wide supply range.
3.0 to 5.5 volt operation.
Digitally selectable delays.
Schmitt trigger circuitry on the clock input.
Completely static operation.
Long term accuracy with line frequency clock.
High current drive outputs.
up to 25 mA.
Reset input provided with a pullup resistor Connection Diagram PDIP and SOIC (top view) VDD 1 D1 2 D0 3 reset 4 8 VSS 7 Out.
