EM91865A - 13 MEMORY TONE/PULSE DIALER WITH HF/ HD/ REDIAL AND VOLUME CONTROL FUNCTION

Product Overview

ELAN Microelectronics Corp

Datasheet Details

Part number	EM91865A
Manufacturer	ELAN Microelectronics Corp
File Size	134.46 KB
Description	13 MEMORY TONE/PULSE DIALER WITH HF/ HD/ REDIAL AND VOLUME CONTROL FUNCTION
Datasheet	EM91865A Datasheet

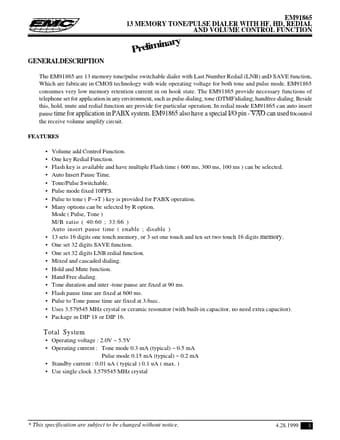

Additional preview pages of the EM91865A datasheet.

Product details

Description

The EM91865 are 13 memory tone/pulse switchable dialer with Last Number Redail (LNB) anD SAVE function, Which are fabricate in CMOS technology with wide operating voltage for both tone and pulse mode.

Features

Volume add Control Function. One key Redial Function. Flash key is available and have multiple Flash time ( 600 ms, 300 ms, 100 ms ) can be selected. Auto Insert Pause Time. Tone/Pulse Switchable. Pulse mode fixed 10PPS. Pulse to tone ( P→T ) key is provided for PABX operation. Many options can be selected by R option. Mode ( Pulse, Tone ) M/B ratio ( 40:60 ; 33:66 ) Auto insert pause time ( enable ; disable ) 13 set.
