EM85000 - APPLE DESKTOP BUS MOUSE CONTROLLER

ELAN Microelectronics Corp

The EM85000 by ELAN Microelectronics Corp is a APPLE DESKTOP BUS MOUSE CONTROLLER. Below is the official datasheet preview.

📥 Download Datasheet

EM85000 APPLE DESKTOP BUS MOUSE CONTROLLER by ELAN Microelectronics Corp - Datasheet Preview — Official preview page of the **EM85000** APPLE DESKTOP BUS MOUSE CONTROLLER datasheet (ELAN Microelectronics Corp).

Datasheet Details

Part number	EM85000
Manufacturer	ELAN Microelectronics Corp
File Size	133.08 KB
Description	APPLE DESKTOP BUS MOUSE CONTROLLER
Datasheet	EM85000_ELANMicroelectronicsCorp.pdf

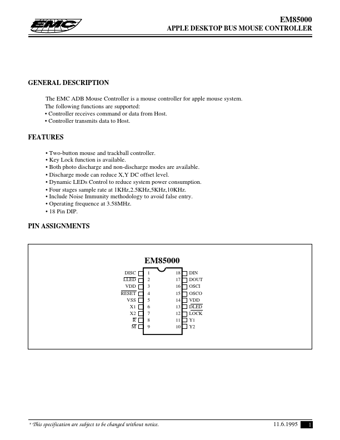

Additional preview pages of the EM85000 datasheet.

EM85000 Product details

Description

The EMC ADB Mouse Controller is a mouse controller for apple mouse system. Controller receives command or data from Host. Controller transmits data to Host.

Features

Two-button mouse and trackball controller.
Key Lock function is available.
Both photo discharge and non-discharge modes are available.
Discharge mode can reduce X,Y DC offset level.
Dynamic LEDs Control to reduce system power consumption.
Four stages sample rate at 1KHz,2.5KHz,5KHz,10KHz.
Include Noise Immunity methodology to avoid false entry.
Operating frequence at 3.58MHz.
18 Pin DIP. PIN.
