EM78P459 - 8-BIT MICRO-CONTROLLER

Name: EM78P459
SKU: EM78P459-238929

ELAN Microelectronics Corp

📥 Download Datasheet

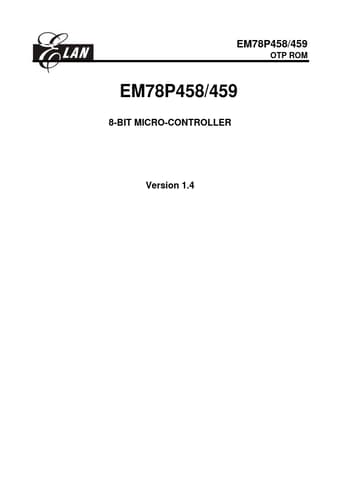

EM78P459 Datasheet Preview — Preview of EM78P459 PDF

Datasheet Details

Part number	EM78P459
Manufacturer	ELAN Microelectronics Corp
File Size	556.26 KB
Description	8-BIT MICRO-CONTROLLER
Datasheet	EM78P459_ELANMicroelectronicsCorp.pdf

EM78P459 Product details

Description

EM78P458/EM78P459 EM78P458 and EM78P459 are 8-bit microprocessors with low-power and high-speed CMOS technology.There is a 4096 13-bit Electrical One Time Programmable Read Only Memory (OTP-ROM) within it.

Features

Operating voltage range: 2.2V~6.0V Available in temperature range: 0°C~80°C Operating frequency range: DC ~ 16MHz Low power consumption:.
less than 1.5 mA at 5V/4MHz.
typical of 15 µA at 3V/32KHz.
typical of 1 µA during the sleep mode 4096 x 13 bits on chip ROM 96 x 8 bits on chip registers (SRAM) 2 bi-directional I/O ports 8 level stacks for subroutine nesting 8-bit real time clock/counter (TCC) with selective signal sources and trigger edges, and with overflow interrupt 8-bit m.
