EM19101 - 8-BIT 5 MSPS A/D CONVERTER (CMOS)

Description

EM19101 is a 8-bit CMOS A/D converter for scanner use.

The adoption of a 2-step parallel system achieves low consumption at a maximum conversion speed of 7 MSPS.

Features

  • 7MSPS maximum conversion speed Build-in sampling and hold circuit Internal self-bias reference voltage 45 mW very low power dissipation at 5MSPS +5V single power supply Available in 24 pin SOP Series EM19101M for 300 mil SOP EM19101S for 209 mil SOP.

📥 Download Datasheet

Datasheet Details

Part number EM19101
Manufacturer ELAN Microelectronics Corp
File Size 105.64 KB
Description 8-BIT 5 MSPS A/D CONVERTER (CMOS)
Datasheet download datasheet EM19101 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
EM1 Silicon Diode Sanken
EM1 OPTISCHE INDICATOR ETC
EM1 Tuning Indicator Philips
EM1 Electronic Indicator ETC
EM1 SILICON RECTIFIER DIODES EIC

Other Datasheets by ELAN Microelectronics Corp

Part Number Description
EM19101M 8-BIT 5 MSPS A/D CONVERTER (CMOS)
EM19101S 8-BIT 5 MSPS A/D CONVERTER (CMOS)
EM19100 8-BIT 20 MSPS VIDEO A/D CONVERTER (CMOS)
EM19100M 8-BIT 20 MSPS VIDEO A/D CONVERTER (CMOS)
EM19100S 8-BIT 20 MSPS VIDEO A/D CONVERTER (CMOS)

Full PDF Text Transcription

Click to expand full text

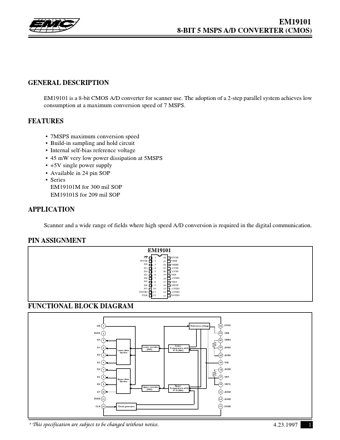

EM19101 EM19101 8-BIT 5 8-BIT 5 MSPS A/D CONVERTER (CMOS) MSPS A/D CONVERTER (CMOS) GENERAL DESCRIPTION EM19101 is a 8-bit CMOS A/D converter for scanner use. The adoption of a 2-step parallel system achieves low consumption at a maximum conversion speed of 7 MSPS. FEATURES • • • • • • • 7MSPS maximum conversion speed Build-in sampling and hold circuit Internal self-bias reference voltage 45 mW very low power dissipation at 5MSPS +5V single power supply Available in 24 pin SOP Series EM19101M for 300 mil SOP EM19101S for 209 mil SOP APPLICATION Scanner and a wide range of fields where high speed A/D conversion is required in the digital communication.
