TZMC27 - ZENER DIODES

Download the TZMC27 datasheet PDF (TZMC2V4 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for zener diodes.

Features

  • :.
  • Silicon planar zener diodes.
  • Very sharp reverse characteristic.
  • Low reverse current lavel.
  • Available with tighter tolerance.
  • Very high stadility.
  • Low noise.
  • Pb / RoHS Free.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (TZMC2V4-EIC.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number TZMC27
Manufacturer EIC
File Size 39.81 KB
Description ZENER DIODES
Datasheet download datasheet TZMC27 Datasheet

📁 Similar Datasheet

  • TZMC27 - 500mW Surface Mount Zener Diodes (TAITRON)
  • TZMC27-M - Small Signal Zener Diodes (Vishay)
  • TZMC20 - 500mW Surface Mount Zener Diodes (TAITRON)
  • TZMC20-M - Small Signal Zener Diodes (Vishay)
  • TZMC22 - 500mW Surface Mount Zener Diodes (TAITRON)
  • TZMC22-M - Small Signal Zener Diodes (Vishay)
  • TZMC24 - 500mW Surface Mount Zener Diodes (TAITRON)
  • TZMC24-M - Small Signal Zener Diodes (Vishay)
  • TZMC2V4 - 500mW Surface Mount Zener Diodes (TAITRON)
  • TZMC2V4-M - Small Signal Zener Diodes (Vishay)
Other Datasheets by EIC

Full PDF Text Transcription

Click to expand full text

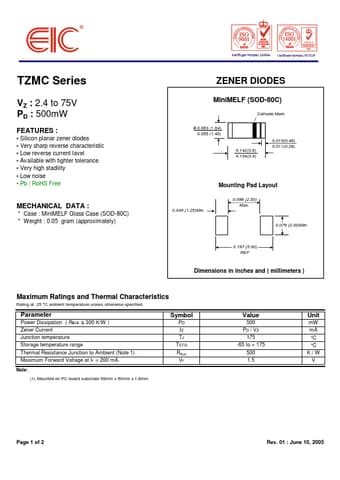

TZMC Series VZ : 2.4 to 75V PD : 500mW FEATURES : • Silicon planar zener diodes • Very sharp reverse characteristic • Low reverse current lavel • Available with tighter tolerance • Very high stadility • Low noise • Pb / RoHS Free MECHANICAL DATA : * Case : MiniMELF Glass Case (SOD-80C) * Weight : 0.05 gram (approximately) ZENER DIODES MiniMELF (SOD-80C) Cathode Mark φ 0.063 (1.64) 0.055 (1.40) 0.142(3.6) 0.134(3.4) 0.019(0.48) 0.011(0.28) 0.049 (1.25)Min. Mounting Pad Layout 0.098 (2.50) Max. 0.079 (2.00)Min. 0.197 (5.00) REF Dimensions in inches and ( millimeters ) Maximum Ratings and Thermal Characteristics Rating at 25 °C ambient temperature unless otherwise specified.
