SZ1518, SZ153D, SURFACE MOUNT SILICON ZENER DIODES

SZ153D - SZ15D0 VZ : 3.3 - 200 Volts PD : 1 Watt .

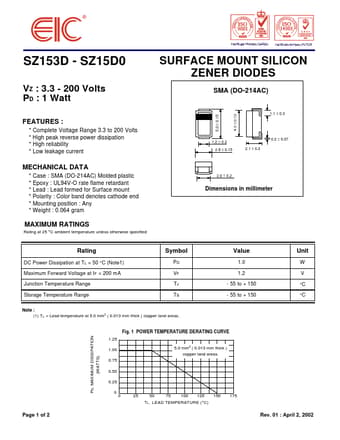

SZ153D-EIC.pdf

SZ1518 Datasheet Preview — This datasheet PDF includes multiple part numbers: SZ1518, SZ153D. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SZ1518, SZ153D

Manufacturer:

EIC

File Size:

26.40 KB

Description:

SURFACE MOUNT SILICON ZENER DIODES

Note:

This datasheet PDF includes multiple part numbers: SZ1518, SZ153D.
Please refer to the document for exact specifications by model.

Features

* :
* Complete Voltage Range 3.3 to 200 Volts
* High peak reverse power dissipation
* High reliability
* Low leakage current MECHANICAL DATA
* Case : SMA (DO-214AC) Molded plastic
* Epoxy : UL94V-O rate flame retardant
* Lead : Lead formed for Surface mount
* Polarity :
