STUS056, STUSxxx - SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR

EIC

📥 Download Datasheet

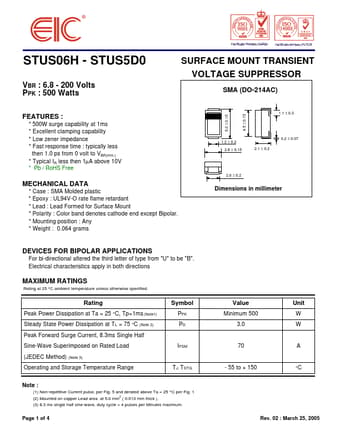

STUS056 Datasheet Preview — This datasheet PDF includes multiple part numbers: STUS056, STUSxxx. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	STUS056, STUSxxx
Manufacturer	EIC
File Size	71.74 KB
Description	SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
Datasheet	STUSxxx_EIC.pdf
Note	This datasheet PDF includes multiple part numbers: STUS056, STUSxxx. Please refer to the document for exact specifications by model.

STUS056 Product details

Features

:.
500W surge capability at 1ms.
Excellent clamping capability.
Low zener impedance.
Fast response time : typically less then 1.0 ps from 0 volt to VBR(min. ).
Typical IR less then 1µA above 10V.
Pb / RoHS Free.
