STUS030, STUSxxx Datasheet - EIC

STUS030, STUSxxx, SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR

STUS06H - STUS5D0 VBR : 6.8 - 200 Volts PPK : 500 Watts SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR SMA (DO-214AC) .

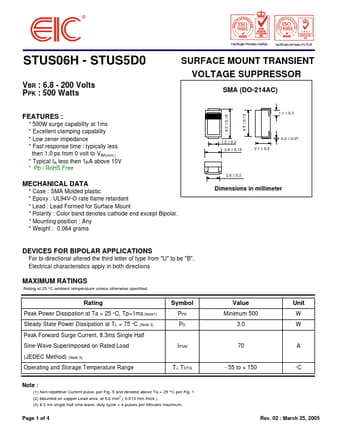

STUSxxx_EIC.pdf

STUS030 Datasheet Preview — This datasheet PDF includes multiple part numbers: STUS030, STUSxxx. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

STUS030, STUSxxx

Manufacturer:

EIC

File Size:

71.74 KB

Description:

SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR

Note:

This datasheet PDF includes multiple part numbers: STUS030, STUSxxx.
Please refer to the document for exact specifications by model.

Features

* :
* 500W surge capability at 1ms
* Excellent clamping capability
* Low zener impedance
* Fast response time : typically less then 1.0 ps from 0 volt to VBR(min. )
* Typical IR less then 1µA above 10V
* Pb / RoHS Free MECHANICAL DATA
* Case : SMA Molded plastic
* Epoxy

Applications

* For bi-directional altered the third letter of type from "U" to be "B". Electrical characteristics apply in both directions MAXIMUM RATINGS Rating at 25 °C ambient temperature unless otherwise specified. Rating Peak Power Dissipation at Ta = 25 °C, Tp=1ms (Note1) Steady State Power Dissipation at
