STUP06I - (STUP06I - STUP5G4) SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR

Download the STUP06I datasheet PDF (STUP547 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for (stup06i - stup5g4) surface mount transient voltage suppressor.

Features

  • :.
  • 400W surge capability at 1ms.
  • Excellent clamping capability.
  • Low zener impedance.
  • Fast response time : typically less then 1.0 ps from 0 volt to VBR(min. ).
  • Typical IR less then 1µA above 10V.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (STUP547_EIC.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number STUP06I
Manufacturer EIC
File Size 56.13 KB
Description (STUP06I - STUP5G4) SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
Datasheet download datasheet STUP06I Datasheet

📁 Similar Datasheet

  • STU03L01 - N-Channel Logic Level Enhancement Mode Field Effect Transistor (SamHop Microelectronics)
  • STU03L07 - N-Channel Logic Level Enhancement Mode Field Effect Transistor (SamHop Microelectronics)
  • STU03N20 - N-Channel MOSFET (SamHop Microelectronics)
  • STU04N20 - N-Channel MOSFET (SamHop Microelectronics)
  • STU06L01 - N-Channel Logic Level Enhancement Mode Field Effect Transistor (SamHop Microelectronics)
  • STU09N25 - N-Channel MOSFET (SamHop Microelectronics)
  • STU100N3LF3 - N-channel Power MOSFET (ST Microelectronics)
  • STU102S - N-Channel MOSFET (SamHop Microelectronics)
  • STU1030PL - P-Channel Enhancement Mode MOSFET (SamHop Microelectronics)
  • STU10L01 - N-Channel Enhancement Mode Field Effect Transistor (SamHop Microelectronics)
Other Datasheets by EIC
  • STUP062 - (STUP06I - STUP5G4) SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
  • STUP068 - (STUP06I - STUP5G4) SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
  • STUP010 - (STUP06I - STUP5G4) SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
  • STUP011 - (STUP06I - STUP5G4) SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
  • STUP012 - (STUP06I - STUP5G4) SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
  • STUP013 - (STUP06I - STUP5G4) SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
  • STUP015 - (STUP06I - STUP5G4) SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
  • STUP016 - (STUP06I - STUP5G4) SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR

Full PDF Text Transcription

Click to expand full text

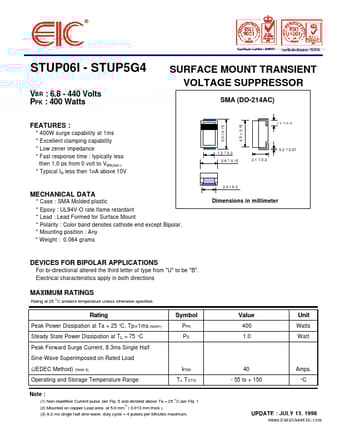

www.DataSheet4U.com STUP06I - STUP5G4 VBR : 6.8 - 440 Volts PPK : 400 Watts FEATURES : * 400W surge capability at 1ms * Excellent clamping capability * Low zener impedance * Fast response time : typically less then 1.0 ps from 0 volt to VBR(min.) * Typical IR less then 1µA above 10V SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR SMA (DO-214AC) 5.0 ± 0.15 4.5 ± 0.15 1.1 ± 0.3 1.2 ± 0.2 2.6 ± 0.15 2.1 ± 0.2 0.2 ± 0.07 2.0 ± 0.2 MECHANICAL DATA * Case : SMA Molded plastic * Epoxy : UL94V-O rate flame retardant * Lead : Lead Formed for Surface Mount * Polarity : Color band denotes cathode end except Bipolar. * Mounting position : Any * Weight : 0.064 grams Dimensions in millimeter DEVICES FOR BIPOLAR APPLICATIONS For bi-directional altered the third letter of type from "U" to be "B".
