SMBJ5388B - SURFACE MOUNT SILICON ZENER DIODES

Download the SMBJ5388B datasheet PDF. This datasheet also covers the SMBJ5333B variant, as both devices belong to the same surface mount silicon zener diodes family and are provided as variant models within a single manufacturer datasheet.

Features

  • :.
  • High peak reverse power dissipation.
  • High reliability.
  • Low leakage current.
  • Pb / RoHS Free.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (SMBJ5333B-EIC.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number SMBJ5388B
Manufacturer EIC
File Size 147.94 KB
Description SURFACE MOUNT SILICON ZENER DIODES
Datasheet download datasheet SMBJ5388B Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SMBJ5388B 5.0 Watt Surface Mount SiliconZener Diodes MCC
SMBJ5388B Surface Mount Silicon 5Watt Zener Diodes Microsemi
SMBJ5388B SURFACE MOUNT SILICON ZENER DIODES SunMate
SMBJ5380B 5.0 Watt Surface Mount SiliconZener Diodes MCC
SMBJ5380B Surface Mount Silicon 5Watt Zener Diodes Microsemi

Other Datasheets by EIC

Part Number Description
SMBJ5388A SURFACE MOUNT SILICON ZENER DIODE
SMBJ5380A SURFACE MOUNT SILICON ZENER DIODE
SMBJ5380B SURFACE MOUNT SILICON ZENER DIODES
SMBJ5381A SURFACE MOUNT SILICON ZENER DIODE
SMBJ5381B SURFACE MOUNT SILICON ZENER DIODES

Full PDF Text Transcription

Click to expand full text

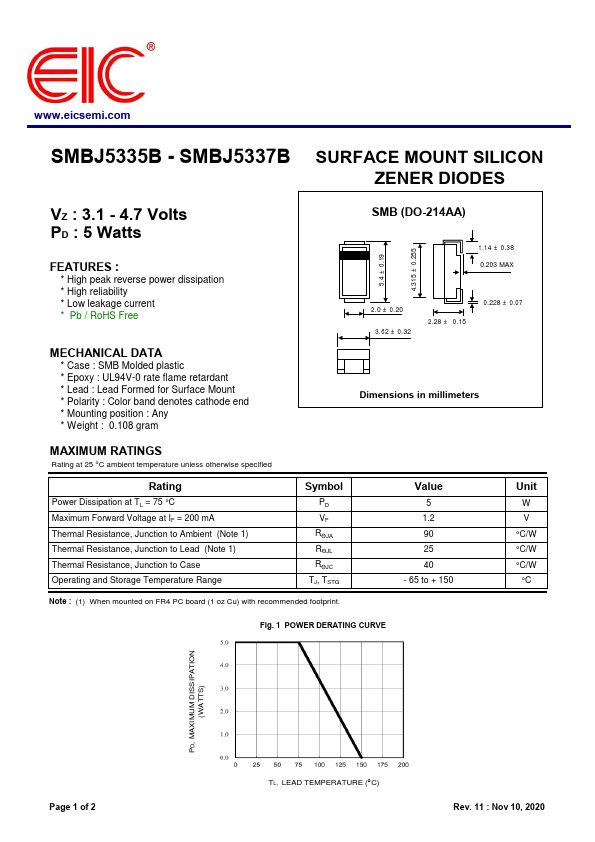

www.eicsemi.com SMBJ5335B - SMBJ5337B SURFACE MOUNT SILICON ZENER DIODES VZ : 3.1 - 4.7 Volts PD : 5 Watts FEATURES : * High peak reverse power dissipation * High reliability * Low leakage current * Pb / RoHS Free MECHANICAL DATA * Case : SMB Molded plastic * Epoxy : UL94V-0 rate flame retardant * Lead : Lead Formed for Surface Mount * Polarity : Color band denotes cathode end * Mounting position : Any * Weight : 0.108 gram SMB (DO-214AA) 1.14 ± 0.38 0.203 MAX 5.4 ± 0.19 4.315 ± 0.255 2.0 ± 0.20 3.62 ± 0.32 2.28 ± 0.15 0.228 ± 0.
