SMBJ5385B - SURFACE MOUNT SILICON ZENER DIODES

Download the SMBJ5385B datasheet PDF (SMBJ5333B included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for surface mount silicon zener diodes.

Features

  • :.
  • High peak reverse power dissipation.
  • High reliability.
  • Low leakage current.
  • Pb / RoHS Free.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (SMBJ5333B-EIC.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number SMBJ5385B
Manufacturer EIC
File Size 147.94 KB
Description SURFACE MOUNT SILICON ZENER DIODES
Datasheet download datasheet SMBJ5385B Datasheet

📁 Similar Datasheet

  • SMBJ5385B - 5.0 Watt Surface Mount SiliconZener Diodes (MCC)
  • SMBJ5385B - Surface Mount Silicon 5Watt Zener Diodes (Microsemi)
  • SMBJ5385B - SURFACE MOUNT SILICON ZENER DIODES (SunMate)
  • SMBJ5380B - 5.0 Watt Surface Mount SiliconZener Diodes (MCC)
  • SMBJ5380B - Surface Mount Silicon 5Watt Zener Diodes (Microsemi)
  • SMBJ5380B - SURFACE MOUNT SILICON ZENER DIODES (SunMate)
  • SMBJ5381B - 5.0 Watt Surface Mount SiliconZener Diodes (MCC)
  • SMBJ5381B - Surface Mount Silicon 5Watt Zener Diodes (Microsemi)
  • SMBJ5381B - SURFACE MOUNT SILICON ZENER DIODES (SunMate)
  • SMBJ5382B - 5.0 Watt Surface Mount SiliconZener Diodes (MCC)
Other Datasheets by EIC
  • SMBJ5385A - SURFACE MOUNT SILICON ZENER DIODE
  • SMBJ5380A - SURFACE MOUNT SILICON ZENER DIODE
  • SMBJ5380B - SURFACE MOUNT SILICON ZENER DIODES
  • SMBJ5381A - SURFACE MOUNT SILICON ZENER DIODE
  • SMBJ5381B - SURFACE MOUNT SILICON ZENER DIODES
  • SMBJ5382A - SURFACE MOUNT SILICON ZENER DIODE
  • SMBJ5382B - SURFACE MOUNT SILICON ZENER DIODES
  • SMBJ5383A - SURFACE MOUNT SILICON ZENER DIODE

Full PDF Text Transcription

Click to expand full text

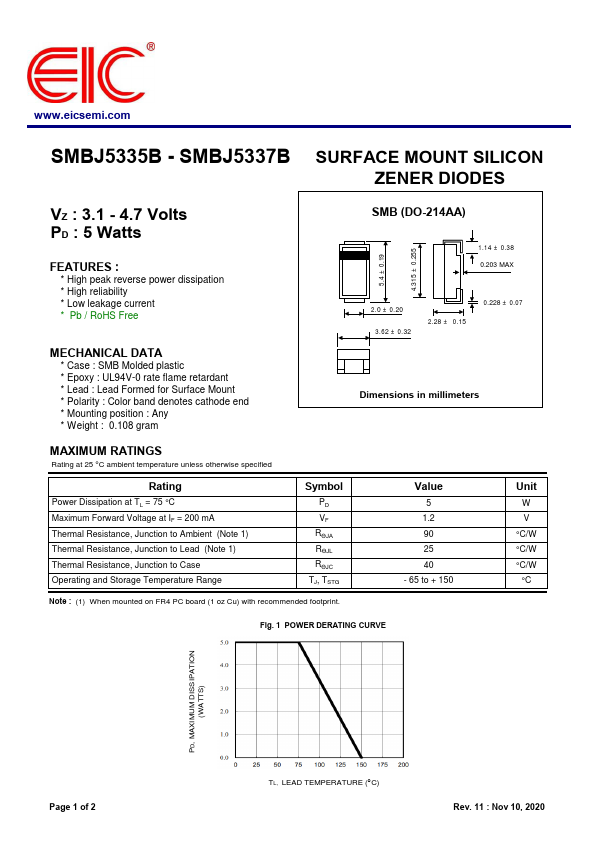

www.eicsemi.com SMBJ5335B - SMBJ5337B SURFACE MOUNT SILICON ZENER DIODES VZ : 3.1 - 4.7 Volts PD : 5 Watts FEATURES : * High peak reverse power dissipation * High reliability * Low leakage current * Pb / RoHS Free MECHANICAL DATA * Case : SMB Molded plastic * Epoxy : UL94V-0 rate flame retardant * Lead : Lead Formed for Surface Mount * Polarity : Color band denotes cathode end * Mounting position : Any * Weight : 0.108 gram SMB (DO-214AA) 1.14 ± 0.38 0.203 MAX 5.4 ± 0.19 4.315 ± 0.255 2.0 ± 0.20 3.62 ± 0.32 2.28 ± 0.15 0.228 ± 0.
