SB560, SB520 - SCHOTTKY BARRIER RECTIFIER DIODES

SB560 Description

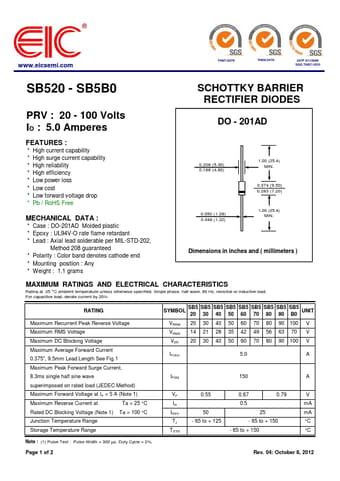

www.eicsemi.com TH97/2478 TH09/2479 IATF 0113686 SGS TH07/1033 SB520 - SB5B0 SCHOTTKY BARRIER RECTIFIER DIODES PRV : 20 - 100 Volts IO : 5.0 Amp.

SB560 Features

* :
* High current capability
* High surge current capability
* High reliability
* High efficiency
* Low power loss
* Low cost
* Low forward voltage drop
* Pb / RoHS Free MECHANICAL DATA :
* Case : DO-201AD Molded plastic
* Epoxy : UL94V-O rate flame retardant

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SB560, SB520. Please refer to the document for exact specifications by model.
datasheet Preview Page 2

Datasheet Details

Part number
SB560, SB520
Manufacturer
EIC
File Size
52.09 KB
Datasheet
SB520-EIC.pdf
Description
SCHOTTKY BARRIER RECTIFIER DIODES
Note
This datasheet PDF includes multiple part numbers: SB560, SB520.
Please refer to the document for exact specifications by model.
