Certificate TH97/10561QM
Certificate TW00/17276EM

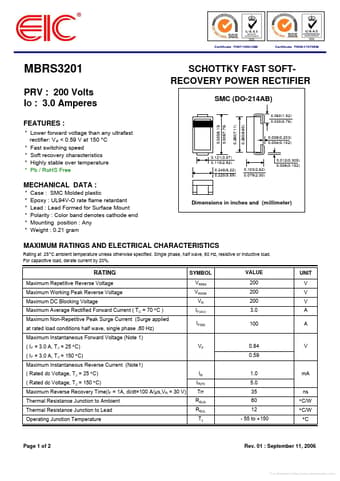

MBRS3201
PRV : 200 Volts IO : 3.0 Amperes
FEATURES :
* Lower forward voltage than any ultrafast rectifier: V F < 0.59 V at 150 °C * Fast switching speed * Soft recovery characteristics * Highly stable over temperature * Pb / RoHS Free
SCHOTTKY FAST SOFTRECOVERY POWER RECTIFIER
SMC (DO-214AB)
0.060(1.52) 0.030(0.76) 0.320(8.13) 0.305(7.75) 0.280(7.11) 0.260(6.60)
0.008(0.203) 0.004(0.102)
0.121(3.07) 0.115(2.92) 0.245(6.22) 0.220(5.59) 0.103(2.62) 0.079(2.00)
0.012(0.305) 0.006(0.152)
MECHANICAL DATA :
* * * * * * Case : SMC Molded plastic Epoxy : UL94V-O rate flame retardant Lead : Lead Formed for Surface Mount Polarity : Color band denotes cathode end Mounting position : Any Weight : 0.
