MBRF20H150CT - Dual Schottky Barrier Rectifier

Features

  • :.
  • Guarding for overvoltage protection.
  • High frequency operation.
  • Low forward voltage drop.
  • Low power loss, high efficiency.
  • RoHS Compliant.

📥 Download Datasheet

Datasheet Details

Part number MBRF20H150CT
Manufacturer EIC
File Size 88.62 KB
Description Dual Schottky Barrier Rectifier
Datasheet download datasheet MBRF20H150CT Datasheet

📁 Similar Datasheet

  • MBRF20H150CT - Schottky Barrier Rectifier (Inchange Semiconductor)
  • MBRF20H150CT - Dual High-Voltage Schottky Rectifiers (Vishay Siliconix)
  • MBRF20H150CT - Dual Common Cathode Schottky Rectifier (Taiwan Semiconductor)
  • MBRF20H150CTG - Power Rectifier (ON Semiconductor)
  • MBRF20H100CT - Schottky Barrier Diode (BLUE ROCKET ELECTRONICS)
  • MBRF20H100CT - Dual Common Cathode High Voltage Schottky Rectifier (Vishay Siliconix)
  • MBRF20H100CT - SWITCHMODE Power Rectifier (ON Semiconductor)
  • MBRF20H100CT - Dual Common Cathode Schottky Rectifier (Taiwan Semiconductor)
  • MBRF20H100CTG - SWITCHMODE Power Rectifier (ON Semiconductor)
  • MBRF20H200CT - Dual Common-Cathode High-Voltage Schottky Rectifier (Vishay Siliconix)
Other Datasheets by EIC

Full PDF Text Transcription

Click to expand full text

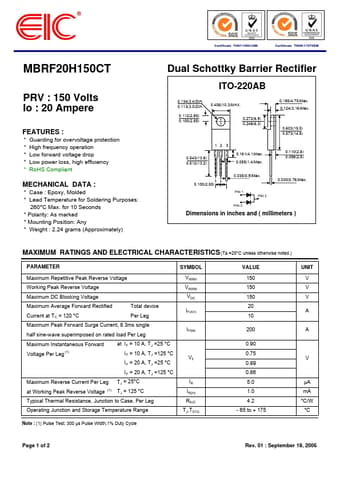

MBRF20H150CT PRV : 150 Volts Io : 20 Ampere FEATURES : * Guarding for overvoltage protection * High frequency operation * Low forward voltage drop * Low power loss, high efficiency * RoHS Compliant MECHANICAL DATA : * Case : Epoxy, Molded * Lead Temperature for Soldering Purposes: 260°C Max. for 10 Seconds * Polarity: As marked * Mounting Position: Any * Weight : 2.24 grams (Approximately) Certificate TH97/10561QM Certificate TW00/17276EM Dual Schottky Barrier Rectifier ITO-220AB 0.134(3.4)DIA. 0.113(3.0)DIA. 0.112(2.85) 0.100(2.55) 0.406(10.3)MAX. 0.272(6.9) 0.248(6.3) 0.185(4.70)Max. 0.124(3.16)Max. 0.603(15.5) 0.573(14.8) 0.543(13.8) 0.512(13.2) 12 3 0.161(4.1)Max. 0.055(1.4)Max. 0.110(2.8) 0.098(2.5) 0.100(2.55) 0.035(0.9)Max. PIN 1 PIN 2 0.030(0.76)Max.
