LMR1G - (LMR1A - LMR1M) FAST RECOVERY RECTIFIERS

Download the LMR1G datasheet PDF. This datasheet also covers the LMR1A variant, as both devices belong to the same (lmr1a - lmr1m) fast recovery rectifiers family and are provided as variant models within a single manufacturer datasheet.

Features

  • :.
  • Glass passivated junction chip High surge current capability High reliability Low reverse current Low forward voltage drop Fast switching for high efficiency Pb / RoHS Free GLASS.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (LMR1A_EIC.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number LMR1G
Manufacturer EIC
File Size 82.22 KB
Description (LMR1A - LMR1M) FAST RECOVERY RECTIFIERS
Datasheet download datasheet LMR1G Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
LMR1 VHF Narrow Band FM Low Cost multi channel radio modules Radiometrix
LMR10510 Step-Down Voltage Regulator Texas Instruments
LMR10515 Step-Down Voltage Regulator Texas Instruments
LMR10520 Step-Down Voltage Regulator Texas Instruments
LMR10530 Step-Down Regulator Texas Instruments

Other Datasheets by EIC

Part Number Description
LMR1A (LMR1A - LMR1M) FAST RECOVERY RECTIFIERS
LMR1B (LMR1A - LMR1M) FAST RECOVERY RECTIFIERS
LMR1D (LMR1A - LMR1M) FAST RECOVERY RECTIFIERS
LMR1J (LMR1A - LMR1M) FAST RECOVERY RECTIFIERS
LMR1K (LMR1A - LMR1M) FAST RECOVERY RECTIFIERS

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

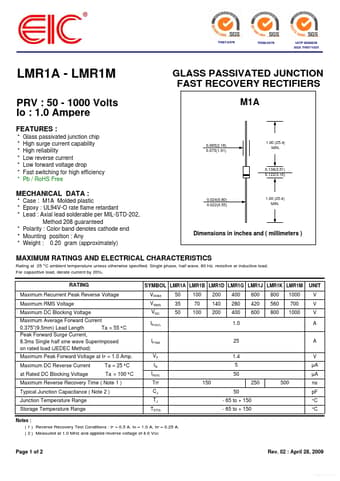

TH97/2478 TH09/2479 IATF 0060636 SGS TH07/1033 LMR1A - LMR1M PRV : 50 - 1000 Volts Io : 1.0 Ampere FEATURES : * * * * * * * Glass passivated junction chip High surge current capability High reliability Low reverse current Low forward voltage drop Fast switching for high efficiency Pb / RoHS Free GLASS PASSIVATED JUNCTION FAST RECOVERY RECTIFIERS M1A 0.085(2.16) 0.075(1.91) 1.00 (25.4) MIN. 0.138(3.51) 0.122(3.10) MECHANICAL DATA : * Case : M1A Molded plastic * Epoxy : UL94V-O rate flame retardant * Lead : Axial lead solderable per MIL-STD-202, Method 208 guaranteed * Polarity : Color band denotes cathode end * Mounting position : Any * Weight : 0.20 gram (approximately) 0.024(0.60) 0.022(0.55) 1.00 (25.4) MIN.
