LL4153 - HIGH SPEED SWITCHING DIODE

EIC

The LL4153 by EIC is a HIGH SPEED SWITCHING DIODE. Below is the official datasheet preview.

📥 Download Datasheet

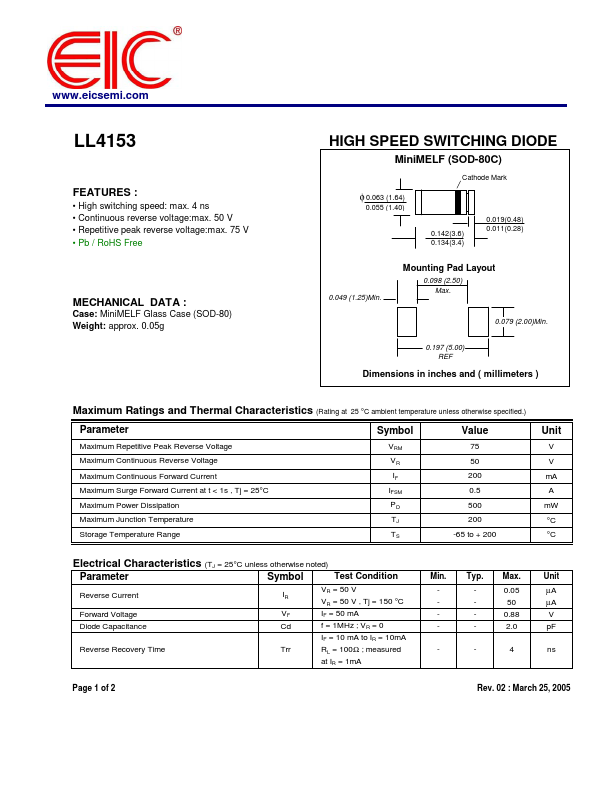

LL4153 HIGH SPEED SWITCHING DIODE by EIC - Datasheet Preview — Official preview page of the LL4153 HIGH SPEED SWITCHING DIODE datasheet (EIC).

Datasheet Details

Part number	LL4153
Manufacturer	EIC
File Size	30.65 KB
Description	HIGH SPEED SWITCHING DIODE
Datasheet	LL4153-EIC.pdf

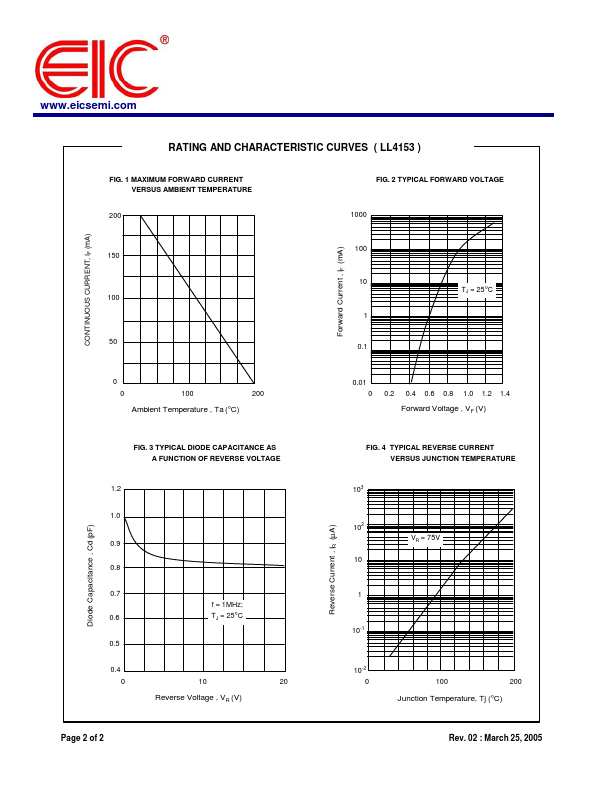

Additional preview pages of the LL4153 datasheet.

LL4153 Product details

Features

:.
High switching speed: max. 4 ns.
Continuous reverse voltage:max. 50 V.
Repetitive peak reverse voltage:max. 75 V.
Pb / RoHS Free.
