KBPC2510, KBPC2500 SILICON BRIDGE RECTIFIER

KBPC2510 Description

www.eicsemi.com TH97/2478 TH09/2479 IATF 0113686 SGS TH07/1033 KBPC2500 - KBPC2510 SILICON BRIDGE RECTIFIERS PRV : 50 - 1000 Volts Io : 25 Ampere.

KBPC2510 Features

* :
* High current capability
* High surge current capability
* High reliability
* Low reverse current
* Low forward voltage drop
* Pb / RoHS Free MECHANICAL DATA :
* Case : Metal Case
* Epoxy : UL94V-0 rate flame retardant
* Terminals : plated .25" (6.35 mm). Fasto

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: KBPC2510, KBPC2500. Please refer to the document for exact specifications by model.

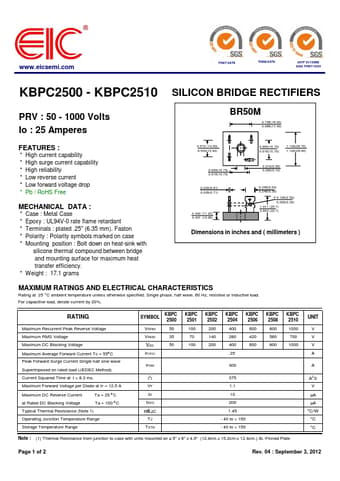

datasheet Preview Page 2

Datasheet Details

Part number
KBPC2510, KBPC2500
Manufacturer
EIC
File Size
111.43 KB
Datasheet
KBPC2500-EIC.pdf
Description
SILICON BRIDGE RECTIFIER
Note
This datasheet PDF includes multiple part numbers: KBPC2510, KBPC2500.
Please refer to the document for exact specifications by model.
