GN2A - GLASS PASSIVATED JUNCTION SILICON SURFACE MOUNT

GN2A Description

www.eicsemi.com GN2A - GN2M PRV : 50 - 1000 Volts Io : 2.0 Amperes .

GN2A Features

* :
* Glass passivated chip
* High current capability
* High reliability
* Low reverse current
* Low forward voltage drop
* Pb / RoHS Free MECHANICAL DATA :
* Case : SMB Molded plastic
* Epoxy : UL94V-0 rate flame retardant
* Lead : Lead Formed for Surface Mount

📥 Download Datasheet

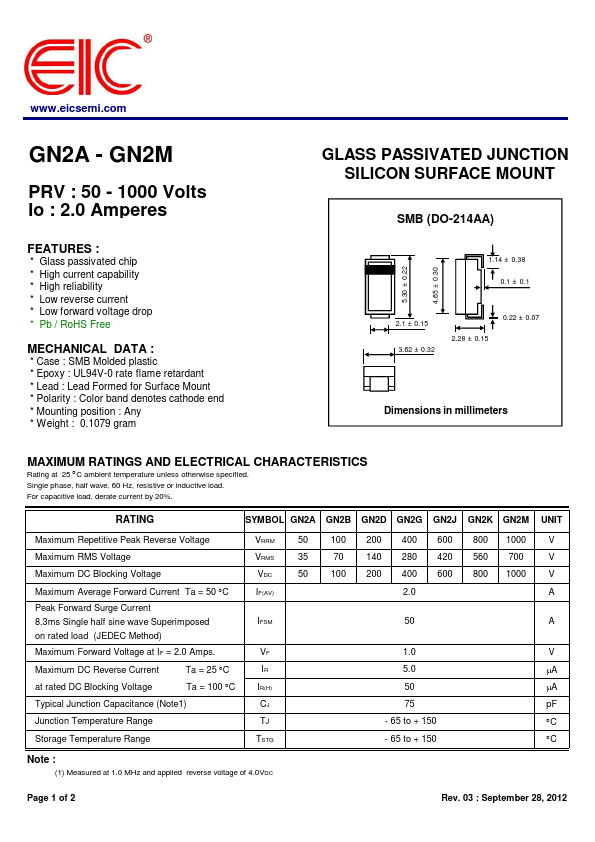

Preview of GN2A PDF

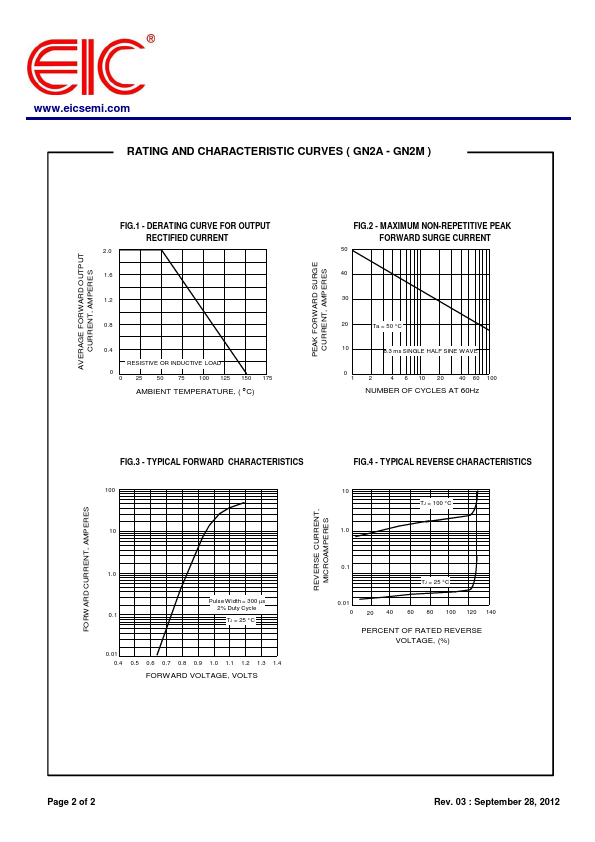

datasheet Preview Page 2

Datasheet Details

Part number
GN2A
Manufacturer
EIC
File Size
39.83 KB
Datasheet
GN2A-EIC.pdf
Description
GLASS PASSIVATED JUNCTION SILICON SURFACE MOUNT
