FR104, FR101 FAST RECOVERY RECTIFIER DIODES

FR104 Description

FR101 - FR107-STR PRV : 50 - 1000 Volts Io : 1.0 Ampere FAST RECOVERY RECTIFIER DIODES DO - 41 .

FR104 Features

* :
* High current capability
* High surge current capability
* High reliability
* Low reverse current
* Low forward voltage drop
* Fast switching for high efficiency
* Pb / RoHS Free MECHANICAL DATA :
* Case : DO-41 Molded plastic
* Epoxy : UL94V-O rate flame retar

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: FR104, FR101. Please refer to the document for exact specifications by model.

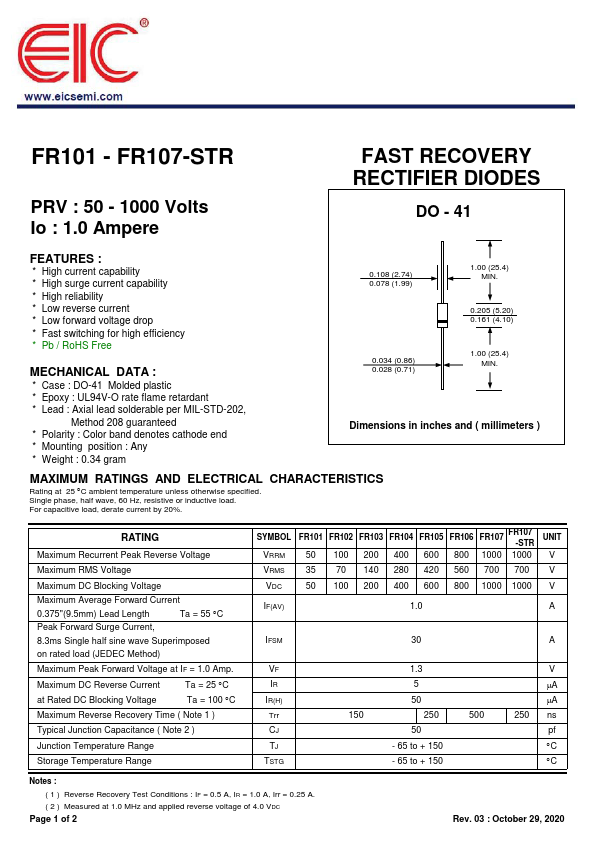

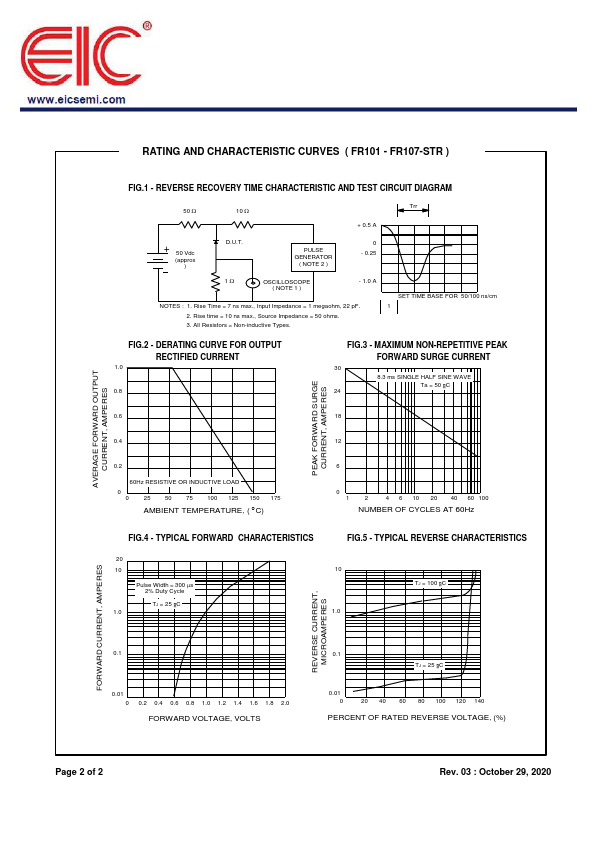

datasheet Preview Page 2

Datasheet Details

Part number
FR104, FR101
Manufacturer
EIC
File Size
74.30 KB
Datasheet
FR101-EIC.pdf
Description
FAST RECOVERY RECTIFIER DIODES
Note
This datasheet PDF includes multiple part numbers: FR104, FR101.
Please refer to the document for exact specifications by model.
