DF1510M - SURFACE MOUNT BRIDGE RECTIFIERS

Download the DF1510M datasheet PDF (DF15005M included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for surface mount bridge rectifiers.

Features

  • :.
  • High current capability.
  • High surge current capability.
  • High reliability.
  • Low reverse current.
  • Low forward voltage drop.
  • Ideal for printed circuit board.
  • Pb / RoHS Free.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (DF15005M-EIC.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number DF1510M
Manufacturer EIC
File Size 151.00 KB
Description SURFACE MOUNT BRIDGE RECTIFIERS
Datasheet download datasheet DF1510M Datasheet

📁 Similar Datasheet

  • DF1510M - 1.5A Glass Passivated Bridge Rectifier (TAITRON)
  • DF1510M - 1.5A Glass Passivated Bridge Rectifier (Vishay)
  • DF1510M - 1.5A GLASS PASSIVATED BRIDGE RECTIFIERS (Diodes)
  • DF1510M - GLASS PASSIVATED BRIDGE RECTIFIERS (LITE-ON)
  • DF1510M - (DF15005M - DF1510M) SINGLE PHASE GLASS PASSIVATED BRIDGE RECTIFIER (ME)
  • DF1510 - Glass Passivated Bridge Rectifier (Eris)
  • DF1510 - Miniature Glass Passivated Single-Phase Bridge Rectifier (GOOD-ARK)
  • DF1510 - 1.5A Single-Phase Glass Passivated Bridge Rectifiers (SEP ELECTRONIC)
  • DF1510 - GLASS PASSIVATED BRIDGE RECTIFIER (ZOWIE)
  • DF1510 - 1.5A Miniature Glass Passivated Single-Phase Bridge Rectifiers (CITC)
Other Datasheets by EIC
  • DF15005M - SURFACE MOUNT BRIDGE RECTIFIERS
  • DF1501M - SURFACE MOUNT BRIDGE RECTIFIERS
  • DF1502M - SURFACE MOUNT BRIDGE RECTIFIERS
  • DF1504M - SURFACE MOUNT BRIDGE RECTIFIERS
  • DF1506M - SURFACE MOUNT BRIDGE RECTIFIERS
  • DF1508M - SURFACE MOUNT BRIDGE RECTIFIERS
  • DF10M - SURFACE MOUNT BRIDGE RECTIFIERS
  • DF10S - SURFACE MOUNT BRIDGE RECTIFIERS

Full PDF Text Transcription

Click to expand full text

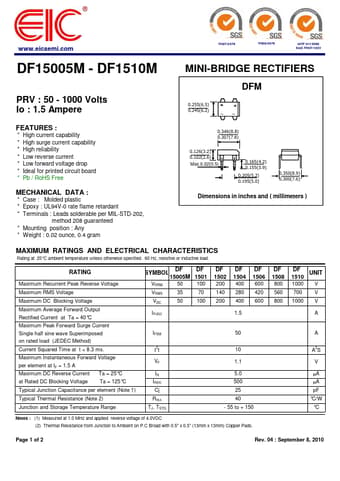

www.eicsemi.com TH97/2478 TH09/2479 IATF 0113686 SGS TH07/1033 DF15005M - DF1510M MINI-BRIDGE RECTIFIERS PRV : 50 - 1000 Volts Io : 1.5 Ampere DFM 0.255(6.5) 0.245(6.2) ~~ FEATURES : * High current capability * High surge current capability * High reliability * Low reverse current * Low forward voltage drop * Ideal for printed circuit board * Pb / RoHS Free MECHANICAL DATA : * Case : Molded plastic * Epoxy : UL94V-0 rate flame retardant * Terminals : Leads solderable per MIL-STD-202, method 208 guaranteed * Mounting position : Any * Weight : 0.02 ounce, 0.4 gram 0.346(8.8) 0.307(7.8) 0.126(3.2) 0.102(2.6) Max.0.02(0.5) 0.165(4.2) 0.155(3.9) 0.205(5.2) 0.195(5.0) 0.350(8.9) 0.300(7.
