D15XB60 - SILICON BRIDGE RECTIFIER

Product Overview

EIC

📥 Download Datasheet

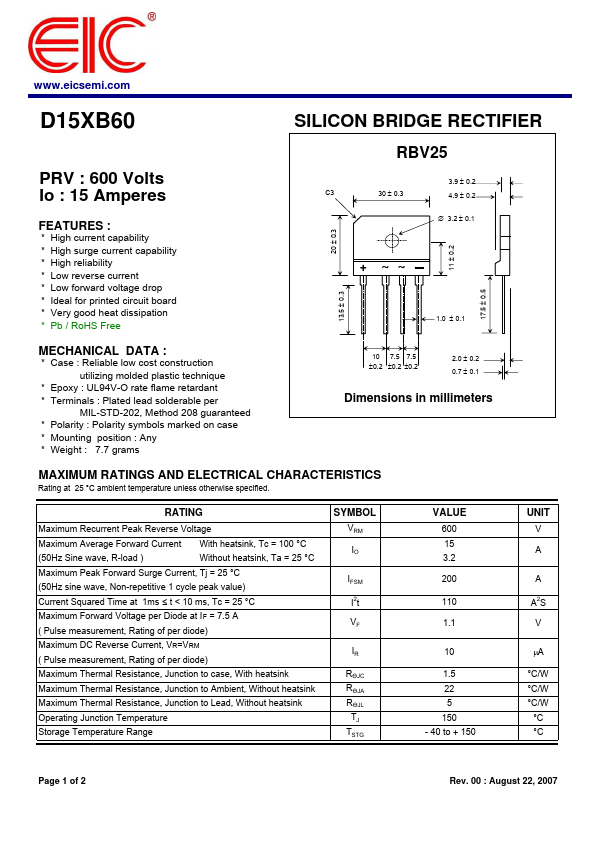

D15XB60 SILICON BRIDGE RECTIFIER by EIC - Datasheet Preview — Datasheet preview – D15XB60

Datasheet Details

Part number	D15XB60
Manufacturer	EIC
File Size	92.62 KB
Description	SILICON BRIDGE RECTIFIER
Datasheet	D15XB60 Datasheet

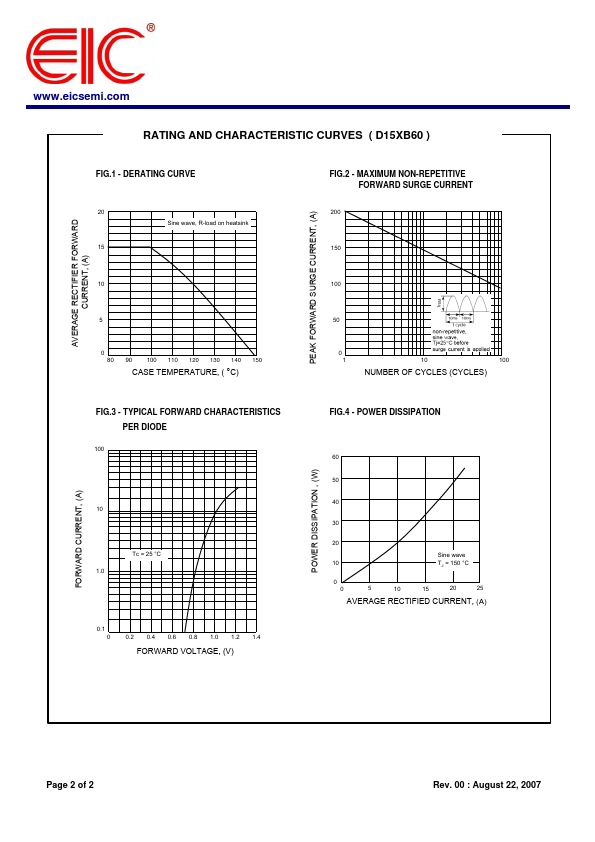

Additional preview pages of the D15XB60 datasheet.

Product details

Features

:.
High current capability.
High surge current capability.
High reliability.
Low reverse current.
Low forward voltage drop.
Ideal for printed circuit board.
Very good heat dissipation.
Pb / RoHS Free RBV25 3.9 ± 0.2 C3 30 ± 0.3 4.9 ± 0.2 ∅ 3.2 ± 0.1 20 ± 0.3 + ~~ 13.5 ± 0.3 1.0 ± 0.1 11 ± 0.2 17.5 ± 0.5.
