BY228 - DAMPER DIODE

Features

  • :.
  • Glass passivated chip.
  • High current capability.
  • High maximum operating temperature.
  • Low reverse current.
  • Pb / RoHS Free.

📥 Download Datasheet

Datasheet Details

Part number BY228
Manufacturer EIC
File Size 108.10 KB
Description DAMPER DIODE
Datasheet download datasheet BY228 Datasheet

📁 Similar Datasheet

  • BY228 - Damper diode (NXP)
  • BY228 - Standard Avalanche Sinterglass Diode (Vishay Telefunken)
  • BY228 - CLAMPER / DAMPER GLASS PASSIVATED RECTIFIER (General Semiconductor)
  • BY228 - SINTERED GLASS JUNCTION AVALANCHE RECTIFIER (Gulf Semiconductor)
  • BY228 - Standard Avalanche Sinterglass Diode (LGE)
  • BY228 - STANDARD RECOVERY RECTIFIER (Digitron Semiconductors)
  • BY228-13 - Silicon Mesa Rectifiers (Vishay Telefunken)
  • BY228-13 - 3A CLAMPER/DAMPER RECTIFIER (Frontier Electronics)
  • BY228-15 - Silicon Mesa Rectifiers (Vishay Telefunken)
  • BY228-15 - 3A CLAMPER/DAMPER RECTIFIER (Frontier Electronics)
Other Datasheets by EIC

    Full PDF Text Transcription

    Click to expand full text

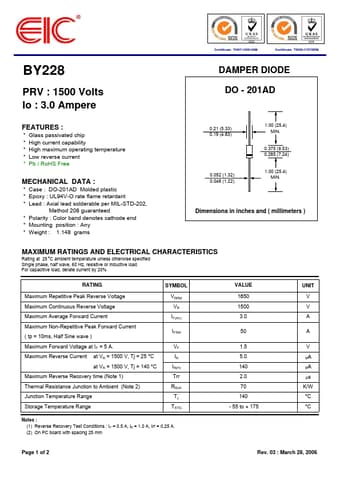

    BY228 PRV : 1500 Volts Io : 3.0 Ampere FEATURES : * Glass passivated chip * High current capability * High maximum operating temperature * Low reverse current * Pb / RoHS Free MECHANICAL DATA : * Case : DO-201AD Molded plastic * Epoxy : UL94V-O rate flame retardant * Lead : Axial lead solderable per MIL-STD-202, Method 208 guaranteed * Polarity : Color band denotes cathode end * Mounting position : Any * Weight : 1.148 grams Certificate TH97/10561QM Certificate TW00/17276EM DAMPER DIODE DO - 201AD 0.21 (5.33) 0.19 (4.83) 0.052 (1.32) 0.048 (1.22) 1.00 (25.4) MIN. 0.375 (9.53) 0.285 (7.24) 1.00 (25.4) MIN.
