1SR35-200, 1SR35-100 SILICON RECTIFIER DIODES

1SR35-200 Description

1SR35-100 ~ 1SR35-400 SILICON RECTIFIER DIODES PRV : 100 - 400 Volts Io : 1.0 Ampere DO - 41 .

1SR35-200 Features

* :
* High current capability
* High surge current capability
* High reliability
* Low reverse current
* Low forward voltage drop
* Pb / RoHS Free MECHANICAL DATA :
* Case : DO-41 Molded plastic
* Epoxy : UL94V-O rate flame retardant
* Lead : Axial lead solderable p

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 1SR35-200, 1SR35-100. Please refer to the document for exact specifications by model.

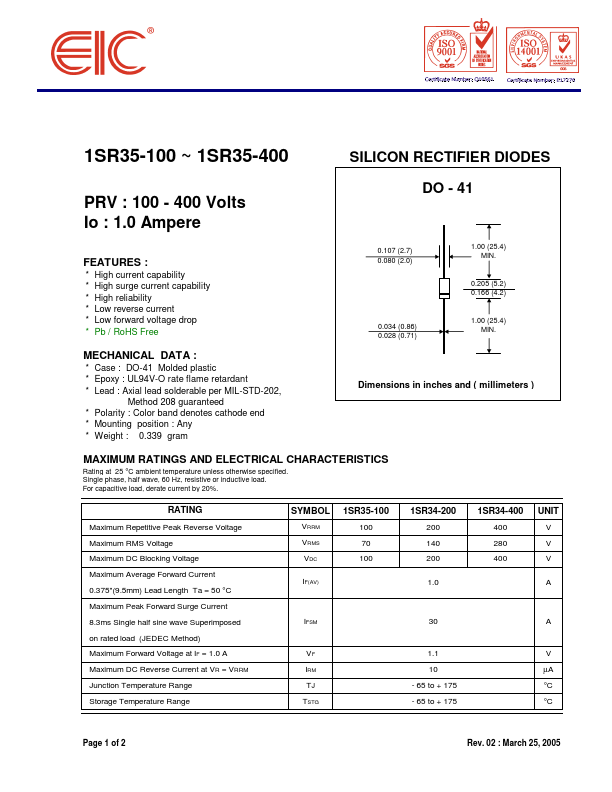

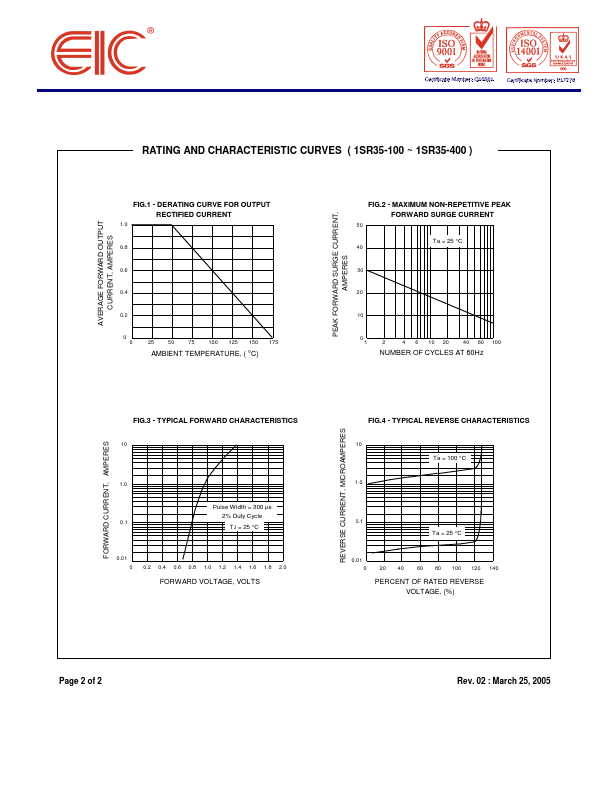

datasheet Preview Page 2

Datasheet Details

Part number
1SR35-200, 1SR35-100
Manufacturer
EIC
File Size
27.38 KB
Datasheet
1SR35-100-EIC.pdf
Description
SILICON RECTIFIER DIODES
Note
This datasheet PDF includes multiple part numbers: 1SR35-200, 1SR35-100.
Please refer to the document for exact specifications by model.
