1N5370A - SILICON ZENER DIODE

Download the 1N5370A datasheet PDF (1N5338A included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for silicon zener diode.

Features

  • :.
  • Complete Voltage Range 5.1 to 200 Volts.
  • High peak reverse power dissipation.
  • High reliability.
  • Low leakage current.
  • Pb / RoHS Free.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (1N5338A-EIC.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number 1N5370A
Manufacturer EIC
File Size 90.19 KB
Description SILICON ZENER DIODE
Datasheet download datasheet 1N5370A Datasheet

📁 Similar Datasheet

  • 1N5370 - 5W SILICON PLANAR ZENER DIODES (JINAN JINGHENG)
  • 1N5370 - 5.OWATT SURMETIC 40 SILICON ZENER DIODES (Motorola)
  • 1N5370B - Silicon Zener Diode (Motorola)
  • 1N5370B - Zener Diode (MCC)
  • 1N5370B - ZENER DIODE (GME)
  • 1N5370B - 5.0W ZENER DIODE (WON-TOP)
  • 1N5370B - Zener Diode (NTE)
  • 1N5370B - Silicon 5 Watt Zener Diodes (Microsemi)
  • 1N5370B - 5W ZENER DIODE (Diodes Incorporated)
  • 1N5370B - Zener Voltage Regulator (ON Semiconductor)
Other Datasheets by EIC

Full PDF Text Transcription

Click to expand full text

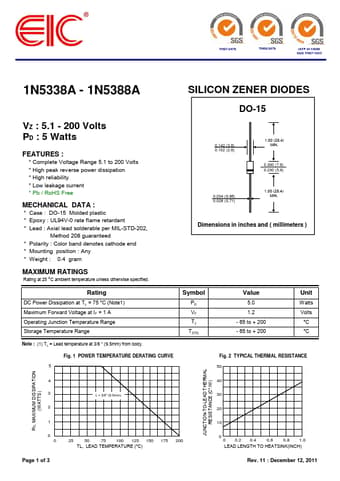

TH97/2478 TH09/2479 IATF 0113686 SGS TH07/1033 1N5338A - 1N5388A SILICON ZENER DIODES DO-15 VZ : 5.1 - 200 Volts PD : 5 Watts FEATURES : * Complete Voltage Range 5.1 to 200 Volts * High peak reverse power dissipation * High reliability * Low leakage current * Pb / RoHS Free MECHANICAL DATA : * Case : DO-15 Molded plastic * Epoxy : UL94V-0 rate flame retardant * Lead : Axial lead solderable per MIL-STD-202, Method 208 guaranteed * Polarity : Color band denotes cathode end * Mounting position : Any * Weight : 0.4 gram 0.142 (3.6) 0.102 (2.6) 0.034 (0.86) 0.028 (0.71) 1.00 (25.4) MIN. 0.300 (7.6) 0.230 (5.8) 1.00 (25.4) MIN. Dimensions in inches and ( millimeters ) MAXIMUM RATINGS Rating at 25 °C ambient temperature unless otherwise specified.
