SF26 SUPER FAST RECTIFIER DIODES

SF26 Description

SF21 - SF29 PRV : 50 - 1000 Volts Io : 2.0 Amperes .

SF26 Features

* :
* High current capability High surge current capability High reliability Low reverse current Low forward voltage drop Super fast recovery time SUPER FAST RECTIFIER DIODES D2 0.161 (4.1) 0.154 (3.9) 1.00 (25.4) MIN. 0.284 (7.2) 0.268 (6.8) MECHANICAL DATA :

📥 Download Datasheet

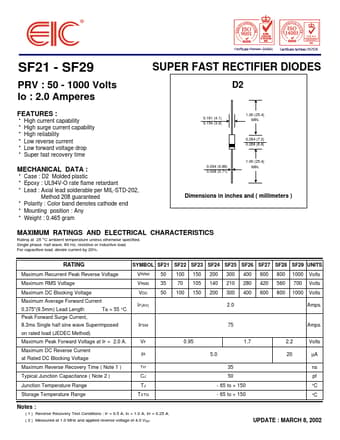

Preview of SF26 PDF
datasheet Preview Page 2
