SF54 - SUPER FAST RECTIFIER DIODES

Features

  • :.
  • High current capability High surge current capability High reliability Low reverse current Low forward voltage drop Super fast recovery time SUPER FAST.

📥 Download Datasheet

Datasheet Details

Part number SF54
Manufacturer EIC discrete Semiconductors
File Size 31.50 KB
Description SUPER FAST RECTIFIER DIODES
Datasheet download datasheet SF54 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SF54 5.0A SUPERFAST DIODE WON-TOP
SF54 Fast / Ultra Fast / Super Fast Recovery Rectifier FEC Semiconductor
SF54 SUPER FAST RECTIFIERS GALAXY ELECTRICAL
SF54 5.0 AMP. Super Fast Rectifiers LGE
SF54 Super Fast Rectifiers SeCoS

Other Datasheets by EIC discrete Semiconductors

Part Number Description
SF51 SUPER FAST RECTIFIER DIODES
SF52 SUPER FAST RECTIFIER DIODES
SF53 SUPER FAST RECTIFIER DIODES
SF55 SUPER FAST RECTIFIER DIODES
SF56 SUPER FAST RECTIFIER DIODES

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

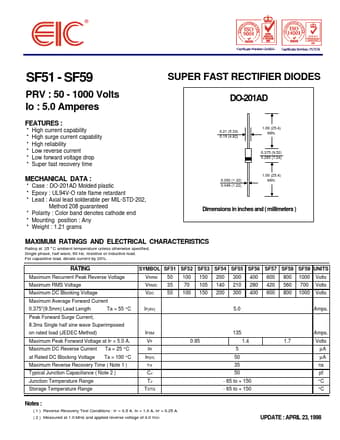

SF51 - SF59 PRV : 50 - 1000 Volts Io : 5.0 Amperes FEATURES : * * * * * * High current capability High surge current capability High reliability Low reverse current Low forward voltage drop Super fast recovery time SUPER FAST RECTIFIER DIODES DO-201AD 0.21 (5.33) 0.19 (4.82) 1.00 (25.4) MIN. 0.375 (9.52) 0.285 (7.24) MECHANICAL DATA : * Case : DO-201AD Molded plastic * Epoxy : UL94V-O rate flame retardant * Lead : Axial lead solderable per MIL-STD-202, Method 208 guaranteed * Polarity : Color band denotes cathode end * Mounting position : Any * Weight : 1.21 grams 0.052 (1.32) 0.048 (1.22) 1.00 (25.4) MIN. Dimensions in inches and ( millimeters ) Rating at 25 ° C ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load.
