DR206G - (DR200G - DR210G) GLASS PASSIVATED JUNCTION SILICON RECTIFIERS

Download the DR206G datasheet PDF. This datasheet also covers the DR200G variant, as both devices belong to the same (dr200g - dr210g) glass passivated junction silicon rectifiers family and are provided as variant models within a single manufacturer datasheet.

Features

  • :.
  • Glass passivated chip High current capability High reliability Low reverse current Low forward voltage drop GLASS.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (DR200G_EICdiscreteSemiconductors.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number DR206G
Manufacturer EIC discrete Semiconductors
File Size 68.44 KB
Description (DR200G - DR210G) GLASS PASSIVATED JUNCTION SILICON RECTIFIERS
Datasheet download datasheet DR206G Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
DR20 Dielectric Coaxial Resonators Token
DR2-3100 Two-Port SAW Resonator ECS
DR2-3150 Two-Port SAW Resonator ECS
DR2-4073 Two-Port SAW Resonator ECS
DR2-4180 Two-Port SAW Resonator ECS

Other Datasheets by EIC discrete Semiconductors

Part Number Description
DR206 (DR200 - DR210) SILICON RECTIFIER DIODES
DR200 (DR200 - DR210) SILICON RECTIFIER DIODES
DR200G (DR200G - DR210G) GLASS PASSIVATED JUNCTION SILICON RECTIFIERS
DR201 (DR200 - DR210) SILICON RECTIFIER DIODES
DR201G (DR200G - DR210G) GLASS PASSIVATED JUNCTION SILICON RECTIFIERS

Full PDF Text Transcription

Click to expand full text

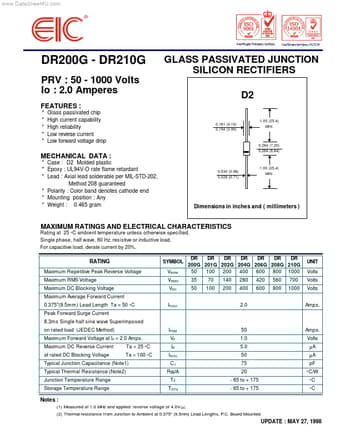

www.DataSheet4U.com DR200G - DR210G PRV : 50 - 1000 Volts Io : 2.0 Amperes FEATURES : * * * * * Glass passivated chip High current capability High reliability Low reverse current Low forward voltage drop GLASS PASSIVATED JUNCTION SILICON RECTIFIERS D2 0.161 (4.10) 0.154 (3.90) 1.00 (25.4) MIN. 0.284 (7.20) 0.268 (6.84) MECHANICAL DATA : * Case : D2 Molded plastic * Epoxy : UL94V-O rate flame retardant * Lead : Axial lead solderable per MIL-STD-202, Method 208 guaranteed * Polarity : Color band denotes cathode end * Mounting position : Any * Weight : 0.465 gram 0.034 (0.86) 0.028 (0.71) 1.00 (25.4) MIN. Dimensions in inches and ( millimeters ) Rating at 25 °C ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load.
