ECC3100 Receiver ASIC

ECC3100 Description

www.DataSheet4U.com ECC3100 SkyPHY Receiver ASIC .
SkyPHY is a revolutionary satellite communications chip implementing the new DVB-S2 standard and offering unprecedented bandwidth/power efficiency.

ECC3100 Features

* DVB-S2 Compliant Near Shannon-Limit Performance Adaptive Coding & Modulation (ACM) Compliant 0.1-45 Msps Symbol Rates Demodulation of QPSK, 8PSK, and 16APSK Microprocessor and I2C Configuration Interfaces MPEG SPI/ASI & Local Bus Output Data Interfaces Tuner Automatic Gain Control (AGC) JTAG bounda

ECC3100 Applications

* from dedicated SCPC systems to very large shared VSAT networks. SkyPHY fully supports the interactive services modes defined in DVB-S2, allowing systems providers to offer the advantages of ACM to their customers. SkyPHY enables next-generation manufacturers of SCPC, VSAT, consumer broadband satelli

📥 Download Datasheet

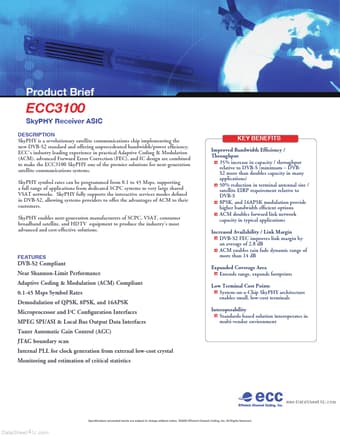

Preview of ECC3100 PDF
datasheet Preview Page 2

Datasheet Details

Part number
ECC3100
Manufacturer
ECC
File Size
693.41 KB
Datasheet
ECC3100_ECC.pdf
Description
Receiver ASIC
