1025TD - Time-delay surface mount fuse

EATON

The 1025TD by EATON is a Time-delay surface mount fuse. Below is the official datasheet preview.

📥 Download Datasheet

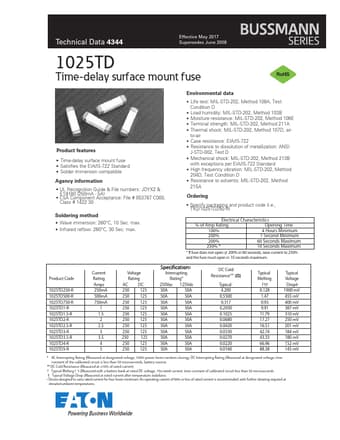

1025TD Time-delay surface mount fuse by EATON - Datasheet Preview — Official preview page of the 1025TD Time-delay surface mount fuse datasheet (EATON).

Datasheet Details

Part number	1025TD
Manufacturer	EATON
File Size	359.00 KB
Description	Time-delay surface mount fuse
Datasheet	1025TD-EATON.pdf
Additional preview pages of the 1025TD datasheet.

1025TD Product details

Features

Time-delay surface mount fuse.
Satisfies the EIA/IS-722 Standard.
Solder immersion compatible Agency information.
UL Recognition Guide & File numbers: JDYX2 & E19180 (250mA - 5A).
CSA Component Acceptance: File # 053787 C000, Class # 1422 30 Soldering method.
Wave immersion: 260°C, 10 Sec. max.
Infrared reflow: 260°C, 30 Sec. max. Environmental data.
Life test: MIL-STD-202, Method 108A, Test Condition D.
Load hum.
