XTR25020 - High Temperature Power Gate Driver

Description

XTR25020 is a high-temperature, high reliability intelligent power transistor driver designed to provide a robust, reliable, compact and efficient solution for driving a large variety of high-temperature, highvoltage, and high-efficiency power transistors.

Features

  • Operational beyond the -60°C to +230°C temperature range.
  • Supply voltage from 4.5V to 35V.
  • Integrated charge-pump inside pull-up driver allowing 100% duty- cycle PWM control signal.
  • Internal 5V LDO regulator.
  • Safe start-up of normally-on devices.
  • Half bridge cross-conduction protection.
  • Pull-up driver with 3A peak current and 1A continuous current capability.
  • Pull-down driver with 3A peak current capability.

📥 Download Datasheet

Datasheet Details

Part number XTR25020
Manufacturer EASii
File Size 675.86 KB
Description High Temperature Power Gate Driver
Datasheet download datasheet XTR25020 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
XTR101 Precision/ Low Drift 4-20mA TWO-WIRE TRANSMITTER Burr-Brown Corporation
XTR103 4-20mA Current Transmitter Burr-Brown Corporation
XTR104 4-20mA Current Transmitter Burr-Brown Corporation
XTR105 4-20mA CURRENT TRANSMITTER Burr-Brown Corporation
XTR106 4-20mA CURRENT TRANSMITTER Burr-Brown Corporation

Other Datasheets by EASii

Part Number Description
XTR25010 High Temperature Power Gate Driver
XTR25410 High Temperature 35V Floating Driver
XTR20410 High Temperature 35V N-Channel Power MOSFET
XTR20810 High Temperature 80V Low-Side N-Channel Power MOSFET
XTR26020 High Temperature Isolated Intelligent Gate Driver

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

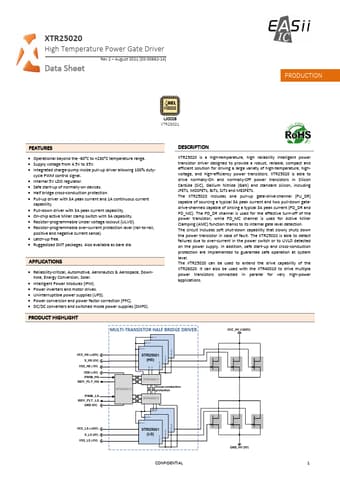

XTR25020 High Temperature Power Gate Driver Data Sheet Rev 2 – August 2021 (DS-00662-14) PRODUCTION XTRPPPPP YYWWANN LJCC28 XTR25021 FEATURES • Operational beyond the -60°C to +230°C temperature range. • Supply voltage from 4.5V to 35V. • Integrated charge-pump inside pull-up driver allowing 100% duty- cycle PWM control signal. • Internal 5V LDO regulator. • Safe start-up of normally-on devices. • Half bridge cross-conduction protection. • Pull-up driver with 3A peak current and 1A continuous current capability. • Pull-down driver with 3A peak current capability. • On-chip active Miller clamp switch with 3A capability. • Resistor-programmable Under voltage lockout (ULVO). • Resistor-programmable over-current protection level (rail-to-rail, positive and negative current sense).
