XTR20410 - High Temperature 35V N-Channel Power MOSFET

Description

XTR20410 is a family of extremely flexible power N-channel MOSFETs with integrated driver designed for extreme reliability and high temperature applications such as DC/DC converters, motor control and power switching.

Features

  • Operational beyond the -60°C to +230°C temperature range.
  • Robust operation as low-side or high-side switch.
  • Input-to-output level shifting from -30V to +35V.
  • Standard Schmitt-trigger CMOS input.
  • Exists in inverting and non-inverting versions.
  • Plug-and-play with any digital 5V output.
  • Over current (desaturation) protection.
  • Soft shut down.
  • Under voltage lockout UVLO protection on the output stage.
  • Lo.

📥 Download Datasheet

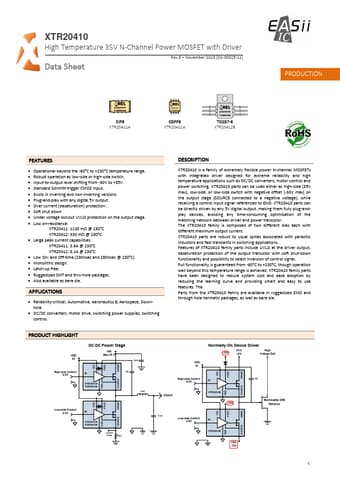

Datasheet preview – XTR20410

Datasheet Details

Part number XTR20410
Manufacturer EASii
File Size 715.17 KB
Description High Temperature 35V N-Channel Power MOSFET
Datasheet download datasheet XTR20410 Datasheet
