MD5S - BRIDGE RECTIFIER

Product Overview

📥 Download Datasheet

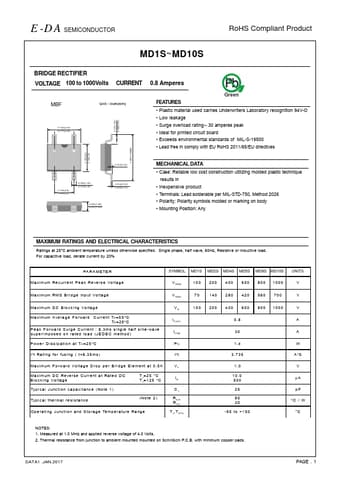

MD5S BRIDGE RECTIFIER by E-DA SEMICONDUCTOR - Datasheet Preview — Datasheet preview – MD5S

Datasheet Details

Part number	MD5S
Manufacturer	E-DA SEMICONDUCTOR
File Size	605.98 KB
Description	BRIDGE RECTIFIER
Datasheet	MD5S Datasheet
Note	This datasheet PDF includes multiple part numbers: MD5S, MD5S-E. Please refer to the document for exact specifications by model.
Additional preview pages of the MD5S datasheet.

Product details

Features

Plastic material used carries Underwriters Laboratory recognition 94V-O.
Low leakage.
Surge overload rating-- 30 amperes peak.
Ideal for printed circuit board.
Exceeds environmental standards of MIL-S-19500.
Lead free in comply with EU RoHS 2011/65/EU directives 0.296(7.5)MAX 0.165(4.2) 0.142(3.6) 0.012(0.35) 0.109(2.8) 0.086(2.2) 0.042(1.05) 0.018(0.45) 0.063(1.60) 0.051(1.30) 0.014(0.35) 0.006(0.15).
