EC9409, EC9409_E - 2A 150KHz PWM Buck DC/DC Converter

EC9409 Description

www.DataSheet4U.com EC9409 2A 150KHz PWM Buck DC/DC Converter .
The EC9409 is a of easy to use adjustable step-down (buck) switch-mode voltage regulator.

EC9409 Features

* include a two stage frequency reducing current limit for the output switch and an over temperature shutdown for complete protection under fault conditions. Features z z z z z z z z z z z 3,3V,5.0V and Adjustable output versions Output adjustable from 1.23v to 43V Fixed 150KHz frequency internal os

EC9409 Applications

* z z z z z z z Simple High-efficiency step-down regulator On-card switching regulators Positive to negative converter LCD monitor and LCD TV DVD recorder and PDP TV Battery charger Step-down to 3.3V for microprocessors Block Diagram E-CMOS Corp. (www. ecmos. com. tw) Page 1 of 11 2007/05/02 www. Da

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: EC9409, EC9409_E. Please refer to the document for exact specifications by model.

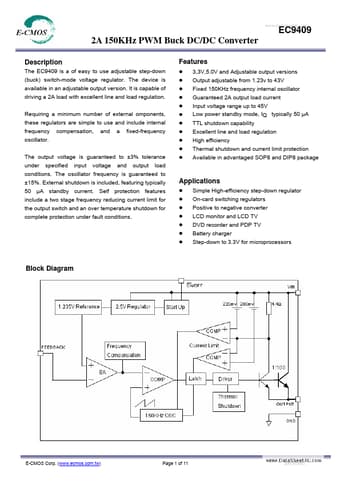

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
EC9409, EC9409_E
Manufacturer
E-CMOS
File Size
681.36 KB
Datasheet
EC9409_E-CMOS.pdf
Description
2A 150KHz PWM Buck DC/DC Converter
Note
This datasheet PDF includes multiple part numbers: EC9409, EC9409_E.
Please refer to the document for exact specifications by model.
