DK27 - Fast Switching Thyristor

Features

  • s Low Switching Losses At High Frequency s Fully Characterised For Operation Up To 20kHz KEY.

📥 Download Datasheet

Datasheet Details

Part number DK27
Manufacturer Dynex
File Size 307.04 KB
Description Fast Switching Thyristor
Datasheet download datasheet DK27 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
DK200-B020 DC Current transducer DK-B020/420 LEM
DK200-B10 DC Current transducer DK-B5/10 LEM
DK200-B420 DC Current transducer DK-B020/420 LEM
DK200-B5 DC Current transducer LEM
DK2051 HIGH PERFORMANCE WIDEBAND RF PLL/VCO RF Micro Devices

Other Datasheets by Dynex

Part Number Description
DK2710FAK Fast Switching Thyristor
DK2710FAM Fast Switching Thyristor
DK2712FAK Fast Switching Thyristor
DK2712FAM Fast Switching Thyristor
DK24 Fast Switching Thyristor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

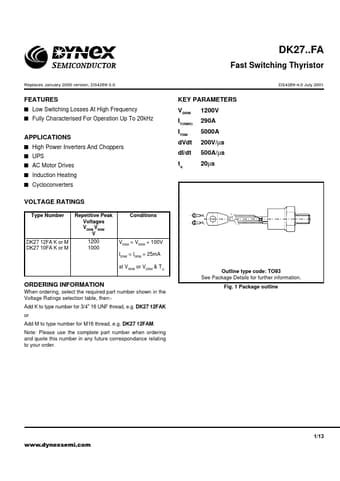

DK27..FA DK27..FA Fast Switching Thyristor Replaces January 2000 version, DS4269-3.0 DS4269-4.0 July 2001 FEATURES s Low Switching Losses At High Frequency s Fully Characterised For Operation Up To 20kHz KEY PARAMETERS VDRM IT(RMS) ITSM dVdt dI/dt tq 1200V 290A 5000A 200V/µs 500A/µs 20µs APPLICATIONS s High Power Inverters And Choppers s UPS s AC Motor Drives s Induction Heating s Cycloconverters VOLTAGE RATINGS Type Number Repetitive Peak Voltages VDRM VRRM V 1200 1000 Conditions DK27 12FA K or M DK27 10FA K or M VRSM = VRRM + 100V IDRM = IRRM = 25mA at VRRM or VDRM & Tvj Outline type code: TO93 See Package Details for further information. Fig.
