DK2416FCM - Fast Switching Thyristor

Download the DK2416FCM datasheet PDF. This datasheet also covers the DK2 variant, as both devices belong to the same fast switching thyristor family and are provided as variant models within a single manufacturer datasheet.

Features

  • s Low Switching Losses At High Frequency s Fully Characterised For Operation Up To 20kHz KEY.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (DK2-414.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number DK2416FCM
Manufacturer Dynex
File Size 304.38 KB
Description Fast Switching Thyristor
Datasheet download datasheet DK2416FCM Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
DK200-B020 DC Current transducer DK-B020/420 LEM
DK200-B10 DC Current transducer DK-B5/10 LEM
DK200-B420 DC Current transducer DK-B020/420 LEM
DK200-B5 DC Current transducer LEM
DK2051 HIGH PERFORMANCE WIDEBAND RF PLL/VCO RF Micro Devices

Other Datasheets by Dynex

Part Number Description
DK2416FCK Fast Switching Thyristor
DK2414FCK Fast Switching Thyristor
DK2414FCM Fast Switching Thyristor
DK2418FCK Fast Switching Thyristor
DK2418FCM Fast Switching Thyristor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

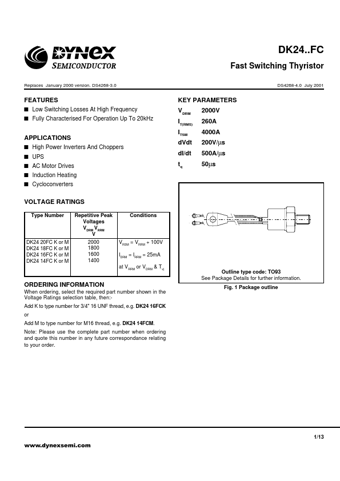

DK24..FC DK24..FC Fast Switching Thyristor Replaces January 2000 version, DS4268-3.0 DS4268-4.0 July 2001 FEATURES s Low Switching Losses At High Frequency s Fully Characterised For Operation Up To 20kHz KEY PARAMETERS VDRM IT(RMS) ITSM dVdt dI/dt tq 2000V 260A 4000A 200V/µs 500A/µs 50µs APPLICATIONS s High Power Inverters And Choppers s UPS s AC Motor Drives s Induction Heating s Cycloconverters VOLTAGE RATINGS Type Number Repetitive Peak Voltages VDRM VRRM V 2000 1800 1600 1400 Conditions DK24 20FC K or M DK24 18FC K or M DK24 16FC K or M DK24 14FC K or M VRSM = VRRM + 100V IDRM = IRRM = 25mA at VRRM or VDRM & Tvj Outline type code: TO93 See Package Details for further information. Fig.
